2 Way Sumitomo Tail Light Connector 6189-0891 For Honda ISO 9001 Approved

Name: 2 Way Sumitomo Tail Light Connector 61890891 For Honda ISO 9001 Approved
Brand: YBADDVANCE
Price: 1 USD

Quality 2 Way Sumitomo Tail Light Connector 6189-0891 For Honda ISO 9001 Approved wholesale

Brand Name : YBADDVANCE

Model Number : 6189-0891

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Color : Black

Martial : PBT/PA66

P/N : 6189-0891

Gender : Female

Feature : Waterproof

Type : Sumitomo 2 Pin Connector

Way : 2 hole

HS code : 8536909000

Contact Now

6189-0891 2 Way Sumitomo Tail Light Connector Fit For Honda

Description

6189-0891 2 Way Sumitomo Tail Light Connector For Honda

Width :17.6 mm

Height: 15.4 mm

Length :24.5mm

1 Row , 2 Way

Mating Part : 6188-0590

Series : HX Sealed

This connector has bottom rib/slot

Temperature range:-40℃~125℃

It is HX Connector for 07-10 H onda Taillight.

It is for H onda Acura Transmission Pressure Switch

Specification

Item name	6189-0891 2 Way Sumitomo Tail Light Connector Fit For Honda
P/N	6189-0891
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	2 pin Sumitomo Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	2 way
Color	Black
Warranty	1 year
Application	Automotive Motorcycles

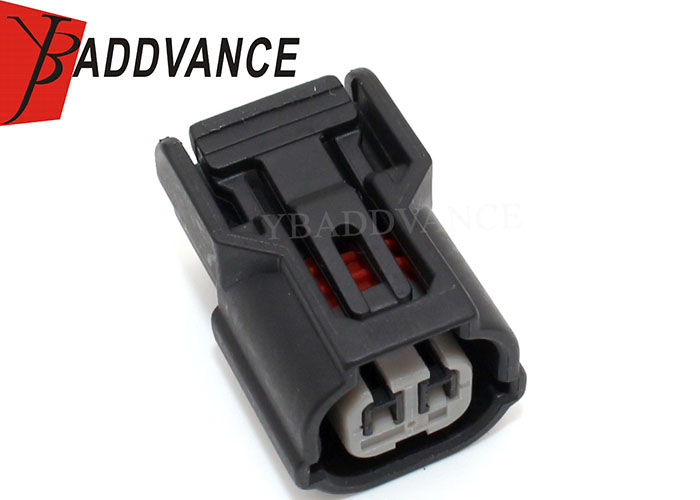

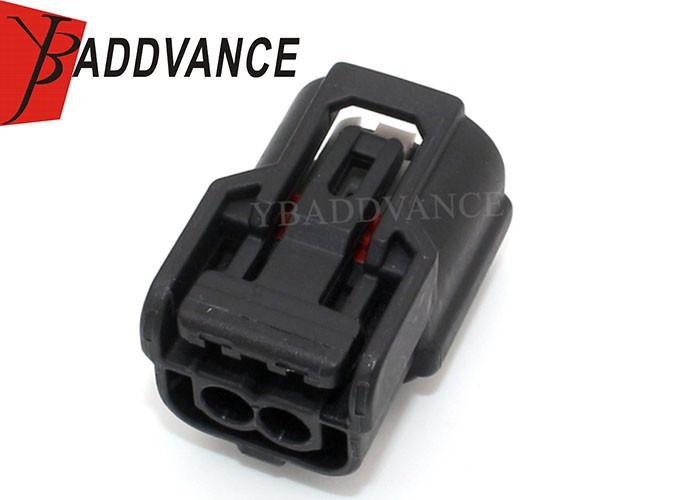

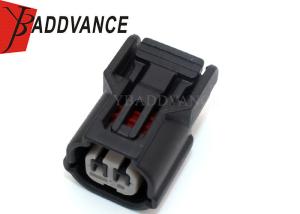

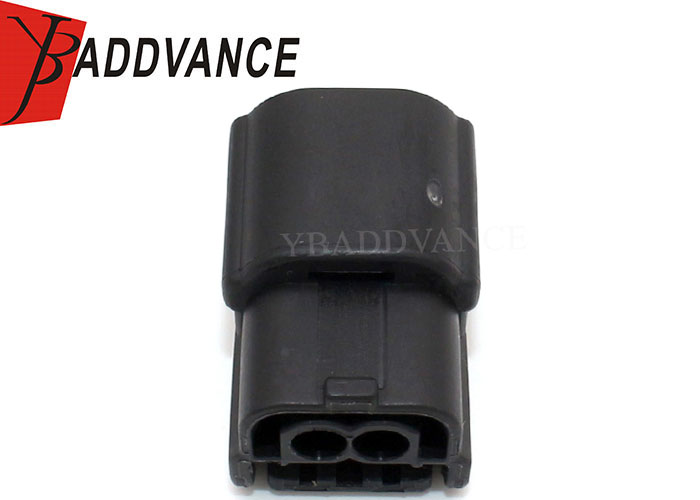

Product Picture Details

2 Way Sumitomo Tail Light Connector 6189-0891 For Honda ISO 9001 Approved
