6189-0249 Sumitomo Sealed Connectors Evo Mivec 2 Pin Female 90980-11156 For Toyota 1JZ-GTE

Name: 61890249 Sumitomo Sealed Connectors Evo Mivec 2 Pin Female 9098011156 For Toyota 1JZGTE
Brand: YBADDVANCE
Price: 0.5 USD

Quality 6189-0249 Sumitomo Sealed Connectors Evo Mivec 2 Pin Female 90980-11156 For Toyota 1JZ-GTE wholesale

Brand Name : YBADDVANCE

Model Number : 6189-0249 90980-11156

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : USD 0.5-0.7 Per set with crimp terminals

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Part Number 1 : 6189-0249

Part Number 2 : 90980-11156

Application : Toyota 1JZ-GTE 2JZ-GTE

Color : Gray

Sealed/Unsealed : Sealed

Male/Female : Female

Number of Row : 1 Row

Number of position : 2 Pin

Leak current : 10μA Max.

Insulation resistance : 100MΩ Min.

Contact Now

Sumitomo 6189-0249 Evo Mivec 2 Pin Female Connector 90980-11156 For Toyota 1JZ-GTE

Product Description

Sumitomo TS Sealed Series 2 Pin female connector Fits wires from .5mm - 1.25mm (22 - 16 AWG) and come with plastic housing with inner seal, wire seals and terminals on each wire.

NOTE - notch is on left bottom side(Left Keyway)

Mating parts 6188-0266(TS sealed series)

Terminal

2.3mm 8100-0460
2.3mm 8100-1344
2.3mm 8100-0461
2.3mm 8100-0594

Wire seals

2.3mm 7165-0842
2.3mm 7165-0349
2.3mm 7165-0395
2.3mm 7165-0351

Specification

Keywords	2 Pin female connector for Toyota
Original Number	6189-0249 90980-11156
Series	Sumitomo TS Sealed Series
Male/Female	female
Material	PBT
Number of Rows	1
Contact resistance	Initial 3mΩ Max. after durability tests 10mΩ Max
Leak current	100μA Max.
Insulation resistance	100MΩ Min.
seal	Initial 50kPa Min. after durability tests 30kPa Min.
Quality Control	All goods will be 100% inspected before shipment
Color	Gray
Operating Temperature range	-40℃~120℃
Sample	We can provide you samples before place an order
Including	Connector housing,terminals,rubber seals
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time	About 3-7 days
Replacement Brand	TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	1kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

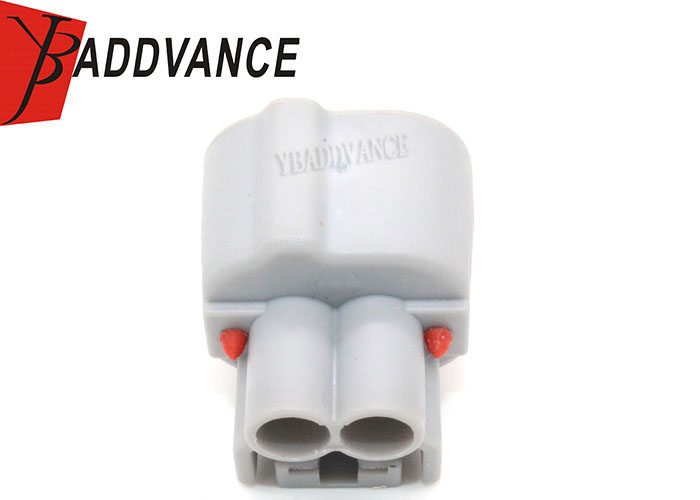

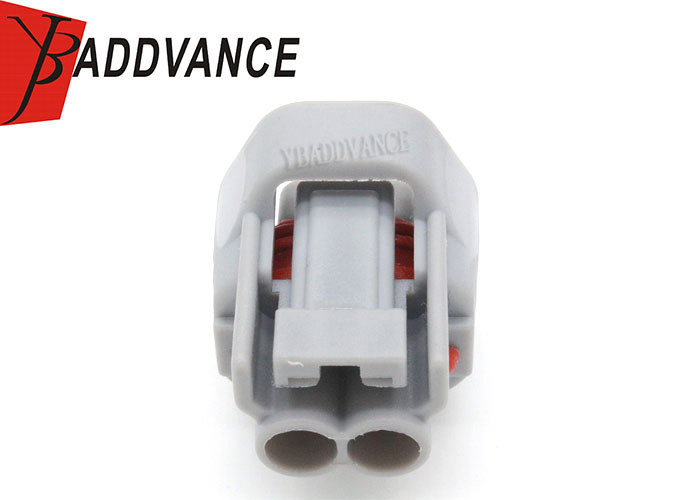

More details about pictures

6189-0249 Sumitomo Sealed Connectors Evo Mivec 2 Pin Female 90980-11156 For Toyota 1JZ-GTE

6189-0249 Sumitomo Sealed Connectors Evo Mivec 2 Pin Female 90980-11156 For Toyota 1JZ-GTE
