6189-0552 6918-1260 Sumitomo 2 Way Connector , Female HX Sealed Sensor Connector For Honda

Name: 61890552 69181260 Sumitomo 2 Way Connector Female HX Sealed Sensor Connector For Honda
Brand: YBADDVANCE
Price: 1 USD

Quality 6189-0552 6918-1260 Sumitomo 2 Way Connector , Female HX Sealed Sensor Connector For Honda wholesale

Brand Name : YBADDVANCE

Model Number : 6189-0552 6918-1260

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 6189-0552 6918-1260

Martial : PBT/PA66

Color : Black

Gender : Female

Feature : Waterproof

Type : Sumitomo connector

Way : 2 hole

HS code : 8536909000

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

6189-0552 6918-1260 2 Way PBT Female HX Sealed Sensor Connector For Honda

Description

2 Way PBT Female HX Sealed Sensor Connector For Honda

It is H onda HD K Series RV LK connector for Accord Fit Civic Odyssey CRV Gearbox Transmission

It is middle rib/slot , please check it carefully before you buy it

Width :21.4 mm

Height: 21.6 mm

Length :28.3 mm

1 Row , 2 Way

Series : HX 090 2.3 mm sealed

Lock :6918-1260

Width :13 mm

Height: 9.4 mm

Housing:PBT+G,PA66+GF;
Terminal:Copper Alloy,Brass,Phosphor Bronze.

Specification

Item name	6189-0552 6918-1260 2 Way PBT Female HX Sealed Sensor Connector For Honda
P/N	6189-0552 6918-1260
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	2 pin Sumitomo Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	2 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

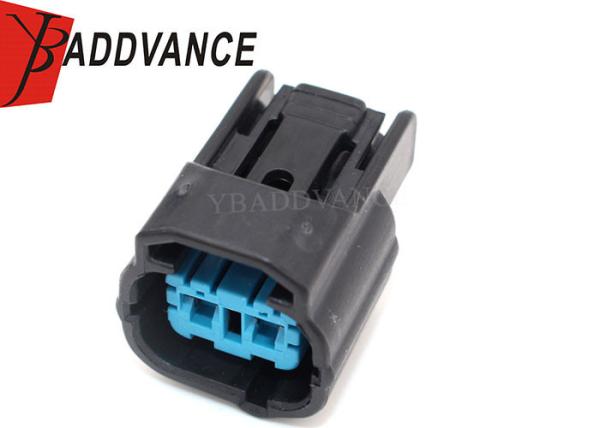

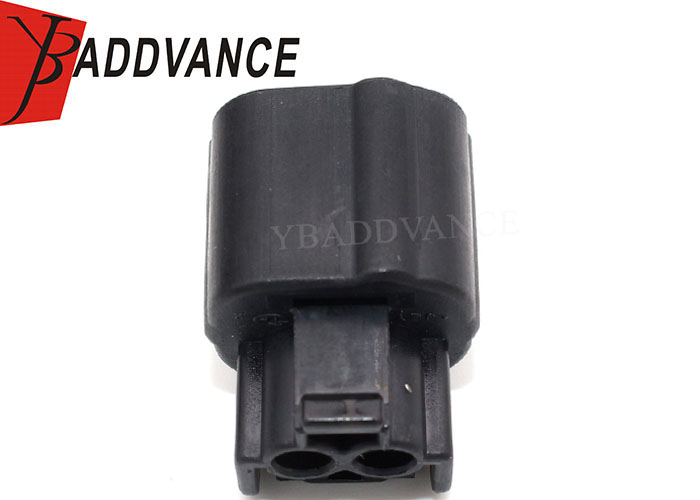

Product Picture Details

6189-0552 6918-1260 Sumitomo 2 Way Connector , Female HX Sealed Sensor Connector For Honda
