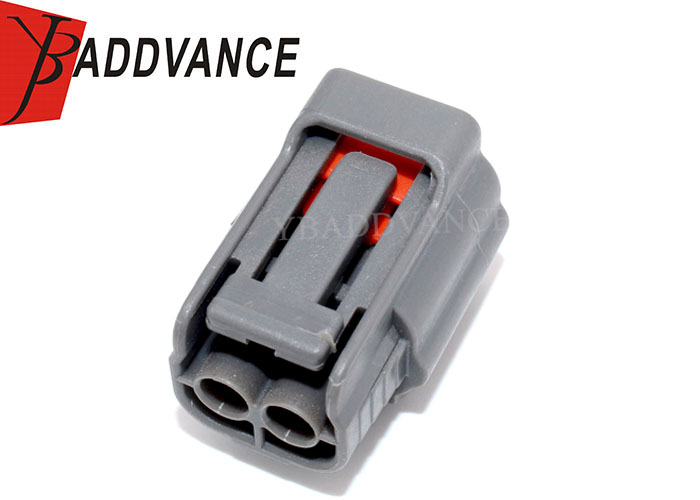

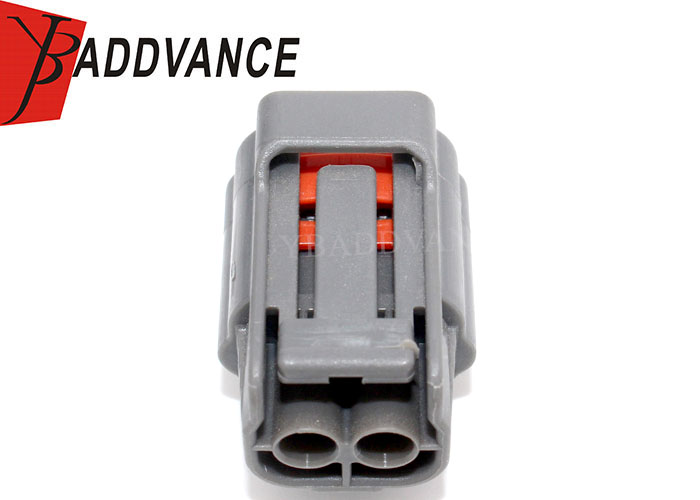

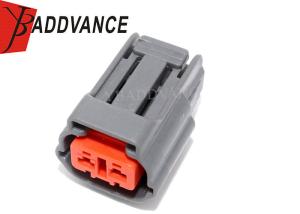

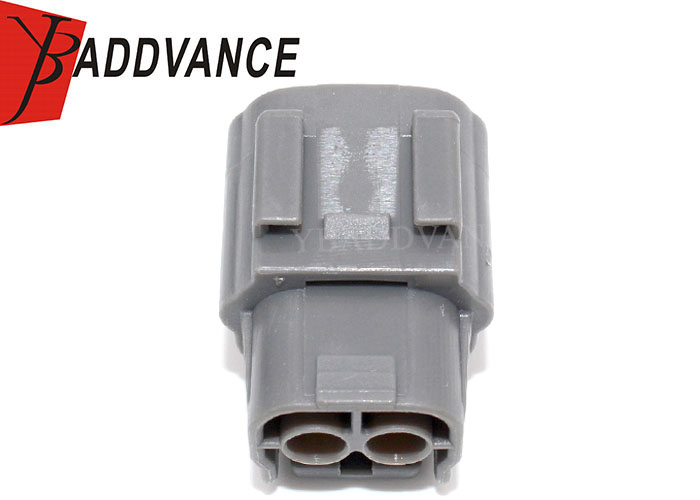

Sumitomo 2 Pin DL 090 Female Connector 6195-0003 For Mazda Knock Sensor Connector

Name: Sumitomo 2 Pin DL 090 Female Connector 61950003 For Mazda Knock Sensor Connector
Brand: YBADDVANCE
Price: 1 USD

Quality Sumitomo 2 Pin DL 090 Female Connector 6195-0003 For Mazda Knock Sensor Connector wholesale

Brand Name : YBADDVANCE

Model Number : 6195-0003

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : Negotiation

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Sumitomo P/N : 6195-0003

Series : DL 090 Sealed Series

Application : Knock Sensor Connector

Color : Black

Number of Position : 2 Pin

Sealed/Unsealed : Sealed

Gender : Female

Material : PBT

Leak current : 100μA Max.

Insulation resistance : 100MΩ Min.

Contact Now

Sumitomo 2 Pin DL 090 Female Connector 6195-0003 For Mazda Knock Sensor Connector

Product Description

2 pin DL 090 Female Connector with Terminals and seals
Terminals Fit For wire size .3 - .85 mm (18-22 AWG)
This connector is fit for 99-05 Mazda Miata Knock Sensor Connector

What's Included:

1Xfemale 2 Way Connector
1XHarness Lock
2X Wire Terminal 22-18AWG
2X Wire Seal

Specification

Keywords	2 Pin knock sensor connector
Sumitomo Part Number	6189-0003
Series	DL 090 sealed series
Male/Female	female
Material	PBT
Sealed/Unsealed	Sealed
Way	2 way
Leak current	100μA Max.
Insulation resistance	100MΩ Min.
Seal	Initial 49.0kPa Min. after durability tests 29.4kPa Min.
Quality Control	All goods will be 100% inspected before shipment
Color	Black
Operating Temperature range	-40℃~120℃
Sample	We can provide you samples before place an order
Including	Connector housing,terminals,rubber seals
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time	About 3-7 days
Replacement Brand	TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	1kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

More details about pictures

Sumitomo 2 Pin DL 090 Female Connector 6195-0003 For Mazda Knock Sensor Connector
