6 Pin Male Air Flow Meter MAF Sensor Connector / RH Connectors 7282-8850-30

Name: 6 Pin Male Air Flow Meter MAF Sensor Connector RH Connectors 7282885030
Brand: YBADDVANCE
Price: 1 USD

Quality 6 Pin Male Air Flow Meter MAF Sensor Connector / RH Connectors 7282-8850-30 wholesale

Brand Name : YBADDVANCE

Model Number : 7282-8850-30

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

PLACE OF ORIGIN : Shaanxi,China

WARRANTY : 12 Months

Martial : PBT

Color : Black

Male/Female : Male

Sealed/Unsealed : Sealed

Application : For Nissan

Number of Positions : 6 Pin

Number of Contact : 6

Connection Type : Wire to wire

Contact Now

6 Pin Male Air Flow Meter MAF Sensor RH Connectors 7282-8850-30

Description

6 Pin male connector is also fit for Accelerator Pedal but most is used for nissan air flow meter

sensors.We made this connector by ourself brands YBADDVANCE .

Product Specification

Allowable Current(Ref.) : 6A(10P)

Low Level Contact Resistance : 8milli ohm Max.(Initial)

Insulation Resistance: 100Megohm Min.(at 500VDC)

Withstanding Voltage : 1000V AC (1min.)

Terminals and wire seals part numbers

Terminals Wire Seals Holders

7114-4415-02 7158-3165-90

7114-4416-02 7158-3166-60

7114-4417-02 7158-3167-80

7158-3168-80

What's included

1 X male connector housing

6 X male terminals

6 X wire seals

Specification

Item name	6 Pin male connector
P/N	7282-8850-30
Gender	Male
Wire Size	20-22AWG
Operating Temperature range	-40℃~125℃
Connection Type	Wire to Wire
Family	RH Connectors
Key words	Air flow meter connectors
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The Number of Poles	6
Color	Black
Warranty	1 year
Application	For Nissan sensors

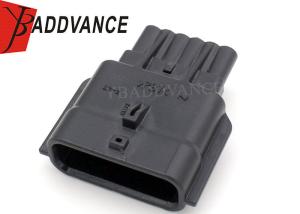

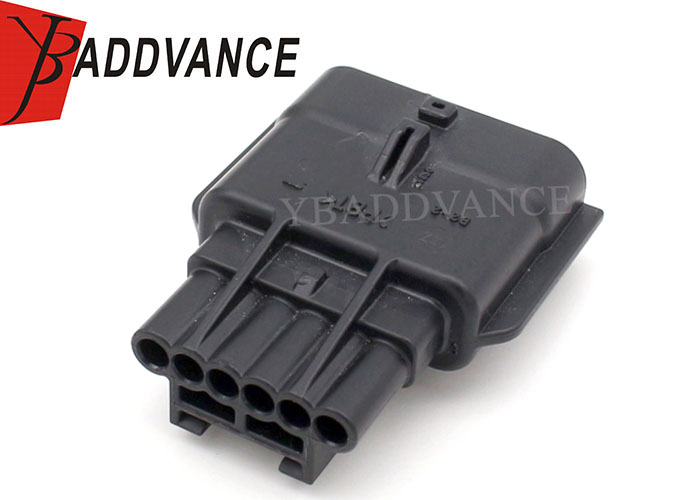

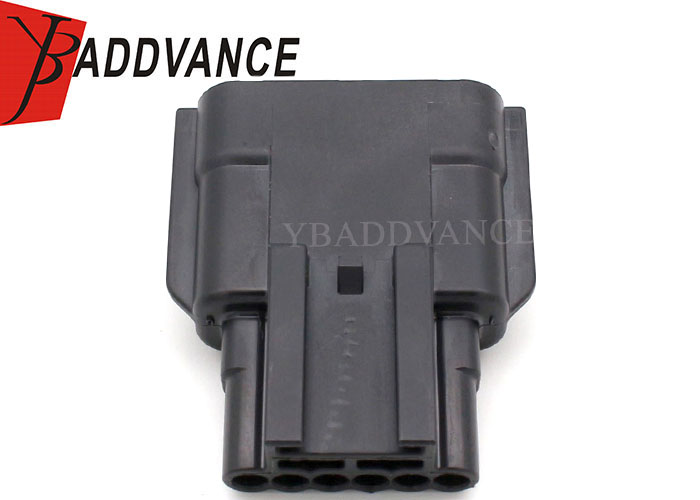

Product Picture Details

6 Pin Male Air Flow Meter MAF Sensor Connector / RH Connectors 7282-8850-30
