PBT 0.64 Mm 12 Pin Automotive Connector Black Color With Terminals 7283-4038-30

Name: PBT 064 Mm 12 Pin Automotive Connector Black Color With Terminals 7283403830
Brand: YBADDVANCE
Price: 1 USD

Quality PBT 0.64 Mm 12 Pin Automotive Connector Black Color With Terminals 7283-4038-30 wholesale

Brand Name : YBADDVANCE

Model Number : 7283-4038-30

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 7283-4038-30

Way : 12 way

Feature : Waterproof

Color : Black

Gender : Female

Application : Automotive Car

HS code : 8536909000

PLACE OF ORIGIN : Shaanxi,China

Martial : PBT/PA66

WARRANTY : 1 year

Contact Now

12 Pin PBT 0.64 mm Sealed Connectors with Terminals 7283-4038-30

Description

PBT 0.64 mm Sealed Connectors for Japanese Car

The connector is for N issan car

These connectors come with the terminals and seals

Height : 18.5 mm

Width : 28.3 mm

Length : 23.75 mm

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

We can make the wire if you need it

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Item name	12 Pin PBT 0.64 mm Sealed Connectors with Terminals 7283-4038-30
P/N	7283-4038-30
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	12 pin waterproof connectors
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	12 Way
Color	Black
Warranty	1 year
Application	Automotive Car

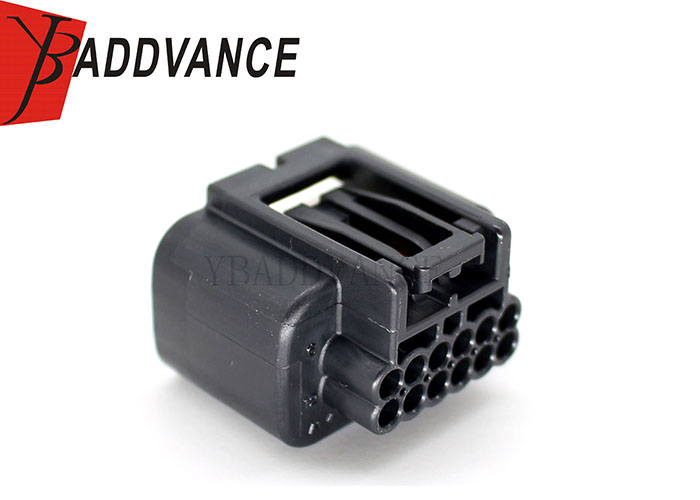

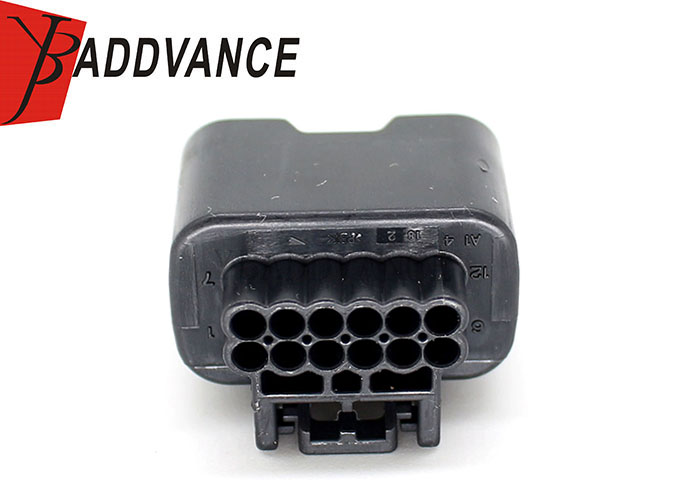

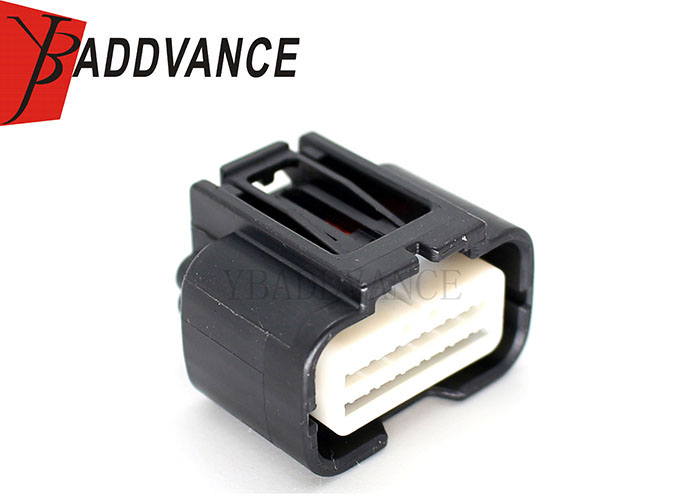

Product Picture Details

PBT 0.64 Mm 12 Pin Automotive Connector Black Color With Terminals 7283-4038-30
