6 Hole Male TE Connectivity Econoseal J Series Connector 174264-2

Name: 6 Hole Male TE Connectivity Econoseal J Series Connector 1742642
Brand: YBADDVANCE
Price: 1 USD

Quality 6 Hole Male TE Connectivity Econoseal J Series Connector 174264-2 wholesale

Brand Name : YBADDVANCE

Model Number : 174264-2

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 174264-2

Feature : Waterproof

Martial : PBT/PA66

Color : Black

HS code : 8536909000

Type : Sealed connector

Way : 6 hole

WARRANTY : 1 year

Gender : male

PLACE OF ORIGIN : Shaanxi,China

Contact Now

6 Hole Male TE Connectivity Econoseal J Series Connector 174264-2

Description

6 Hole Male TE Connectivity Econoseal J Series Connector

For Use With: AMP 174265 Series Pin Crimp Contacts
Wire Gauge (Max):24 AWG
Wire Gauge (Min): 16 AWG

Length: 35.5mm
Width: 23.1mm
Height: 19.2mm

Pitch Spacing: 4.8mm

Minimum Operating Temperature: -30°C
Maximum Operating Temperature: +105°C

Housing Material : PBT

Terminal: Brass/Phosphor Bronze
Seal: Silicon Rubber

The design of these receptacle and plug style wire connector housings allows mis-mating to be prevented thus avoiding contact damage.

Specification

Item name	6 Hole Male TE Connectivity Econoseal J Series Connector 174264-2
P/N	174264-2
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	6 pin Sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	6 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

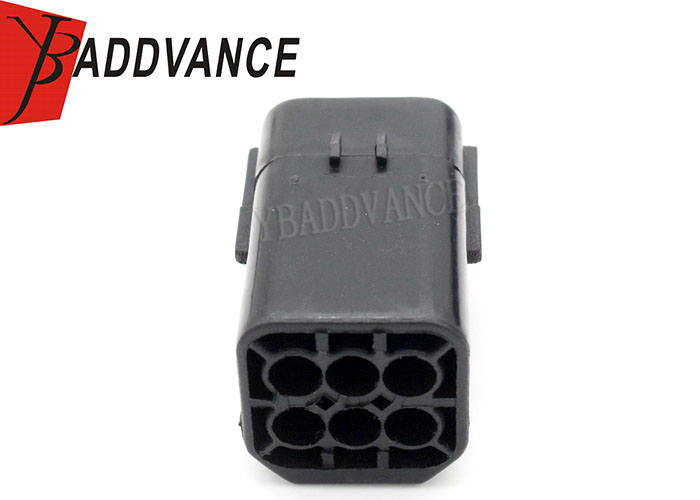

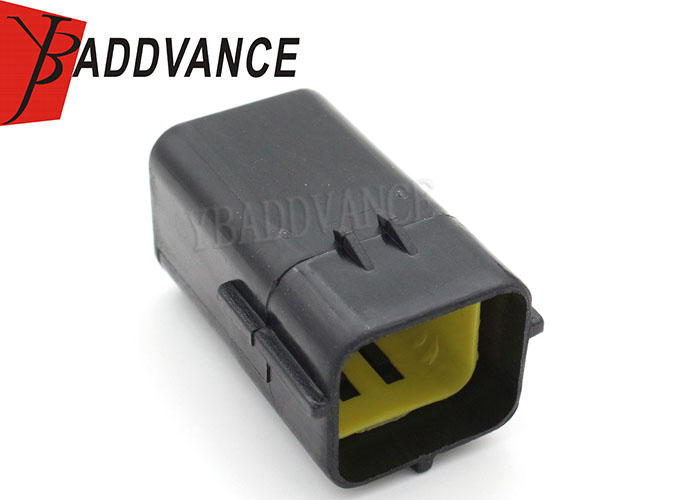

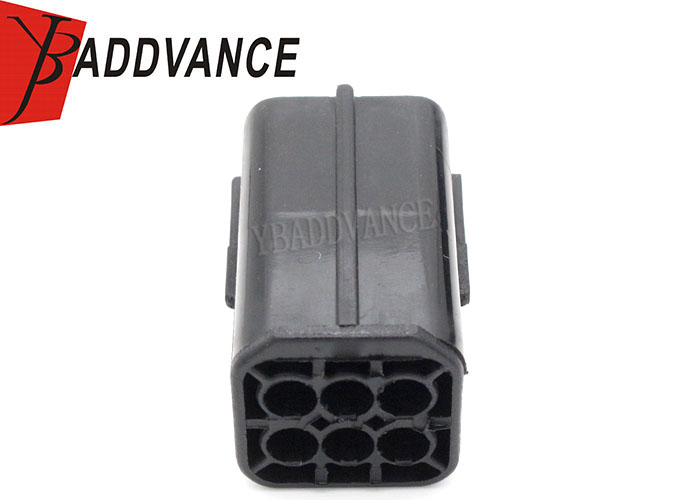

Product Picture Details

6 Hole Male TE Connectivity Econoseal J Series Connector 174264-2
