4 Way Male Sumitomo RS Series 090 Waterproof Connector 6188-0558

Name: 4 Way Male Sumitomo RS Series 090 Waterproof Connector 61880558
Brand: YBADDVANCE
Price: 1 USD

Quality 4 Way Male Sumitomo RS Series 090 Waterproof Connector 6188-0558 wholesale

Brand Name : YBADDVANCE

Model Number : 6188-0558

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 6188-0558

Martial : PBT/PA66

Feature : Waterproof

HS code : 8536909000

Color : Grey

Way : 4 hole

Type : Sealed connector

WARRANTY : 1 year

Gender : Female

PLACE OF ORIGIN : Shaanxi,China

Contact Now

4 Way Male Sumitomo RS Series 090 Waterproof Connector 6188-0558

Description

4 Way Male Sumitomo RS Series 090 Waterproof Connector

Length : 42. mm
Width: 22.2 mm
Height : 26.2 mm
Wire Gauge (Max):22 AWG
Wire Gauge (Min): 18 AWG

Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C

Including : 1 housing +4 terminals +4 seals +1 lock

Housing Material : PBT

Terminal: Brass/Phosphor Bronze
Seal: Silicon Rubber

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Item name	4 Way Male Sumitomo RS Series 090 Waterproof Connector 6188-0558
P/N	6188-0558
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	4 pin Sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	4 way
Color	Grey
Warranty	1 year
Application	Automoive Motorcycles

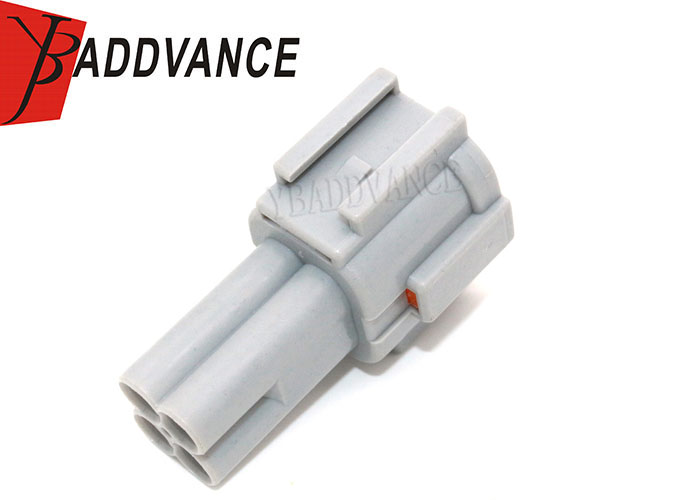

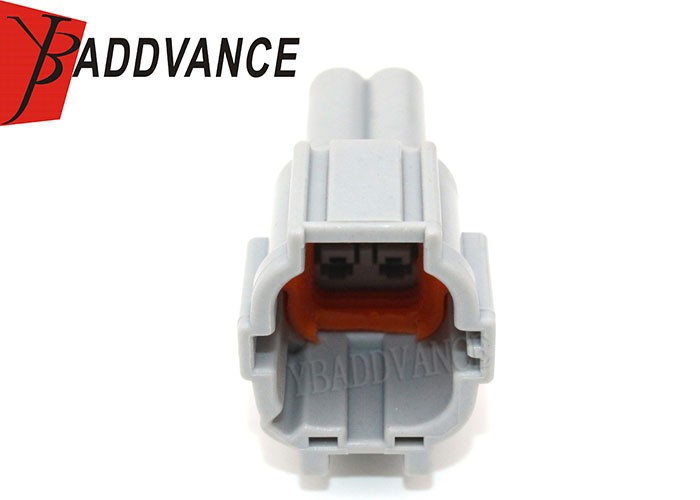

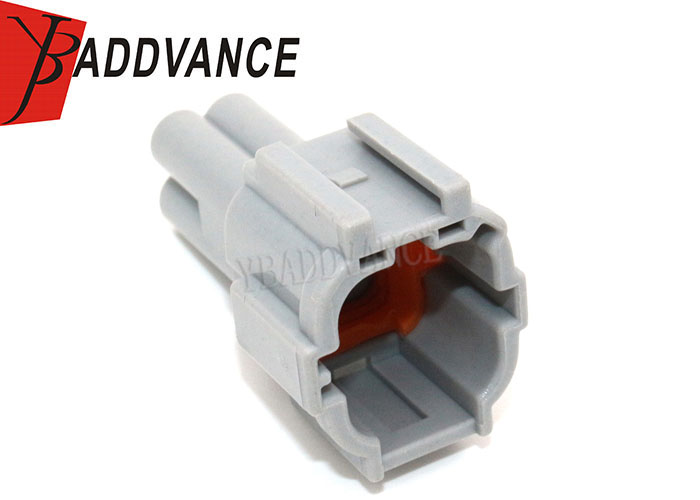

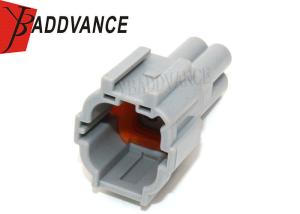

Product Picture Details

4 Way Male Sumitomo RS Series 090 Waterproof Connector 6188-0558
