Green 4 Pin ECU TE Connectivity AMP Connectors 3.5 Series 144998-6 For Automotive

Name: Green 4 Pin ECU TE Connectivity AMP Connectors 35 Series 1449986 For Automotive
Brand: YBADDVANCE
Price: 1 USD

Quality Green 4 Pin ECU TE Connectivity AMP Connectors 3.5 Series 144998-6 For Automotive wholesale

Brand Name : YBADDVANCE

Model Number : 144998-6

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Color : Green

P/N : 144998-6

Martial : PBT/PA66

Gender : male

Feature : Waterproof

Type : AMP Automotive Connectors

Way : 4 hole

HS code : 8536909000

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

4 Pin ECU Green Te Connectivity 3.5 Series Connectors 144998-6

Description

4 Pin ECU Green Te Connectivity 3.5 Series Connectors

Width :36.8 mm

Height: 21.3 mm

Length :37.7 mm

The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.

We can make the wire if you need it .

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

These connectors come with the terminals and seals

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Item name	4 Pin ECU Green Te Connectivity 3.5 Series Connectors 144998-6
P/N	144998-6
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	4 pin AMP Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	4 way
Color	Green
Warranty	1 year
Application	Automotive Motorcycles

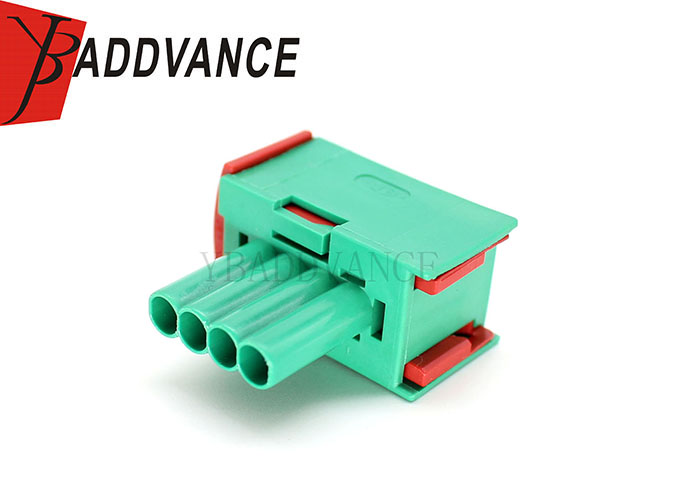

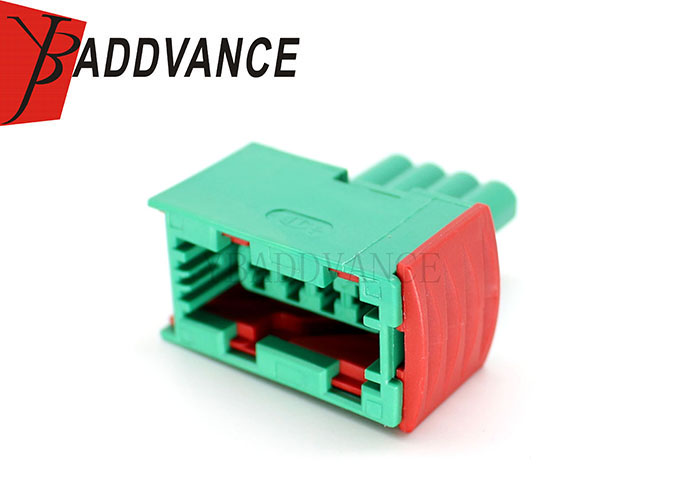

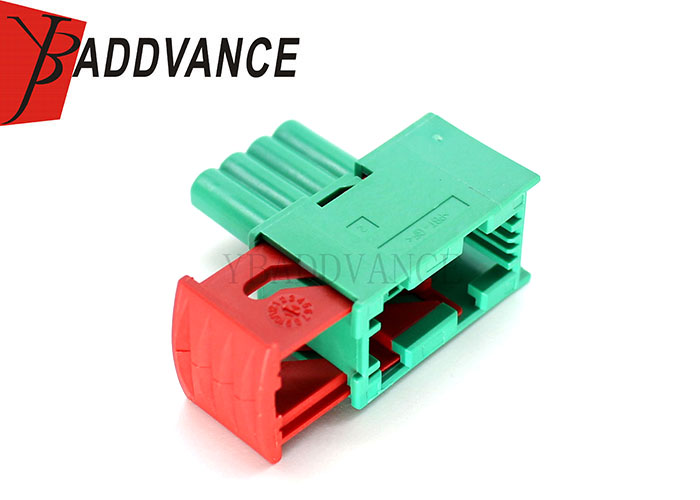

Product Picture Details

Green 4 Pin ECU TE Connectivity AMP Connectors 3.5 Series 144998-6 For Automotive
