23 Pin Amp Connector , TE Connectivity Amp Superseal Connector 770680-1

Name: 23 Pin Amp Connector TE Connectivity Amp Superseal Connector 7706801
Brand: YBADDVANCE
Price: 1 USD

Quality 23 Pin Amp Connector , TE Connectivity Amp Superseal Connector 770680-1 wholesale

Brand Name : YBADDVANCE

Model Number : 770680-1

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Series : AMPSEAL Series

Connector Style : Receptacle Contact Housing

P/N : 770680-1

Contact Size : 1.3mm

Type : Sealed connector

HS code : 8536909000

Way : 23 way

Feature : Waterproof

Gender : Female

name : amp 23 pin connector

Contact Now

23 Way 23 Pin Female Radio Plug TE Connectivity Amp Superseal Connectors 770680-1

Description

23 Position Female Radio Plug for all models 98-up.
The 770680-1 is a 23 position 3 row black Plug Housing for female terminals and is used with AMPSEAL 770520-series socket contacts. The AMPSEAL connector used for wire to board connection.This connector come with connector housing and terminals together.

Specification

Item name	AMPSEAL Series 23 Pin Female Connector Housing 3 Row
P/N	770680-1
Wire Size	18-2AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	2 pin sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of Pin	23 Pin
Color	Black+Red
Warranty	1 year
Application	Automoive Motorcycles

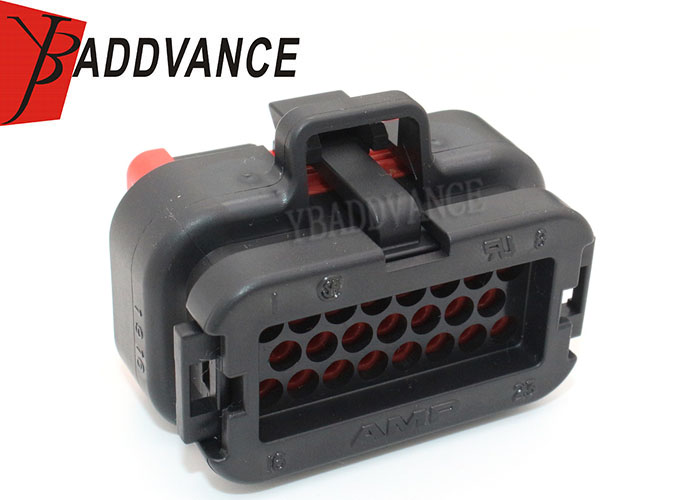

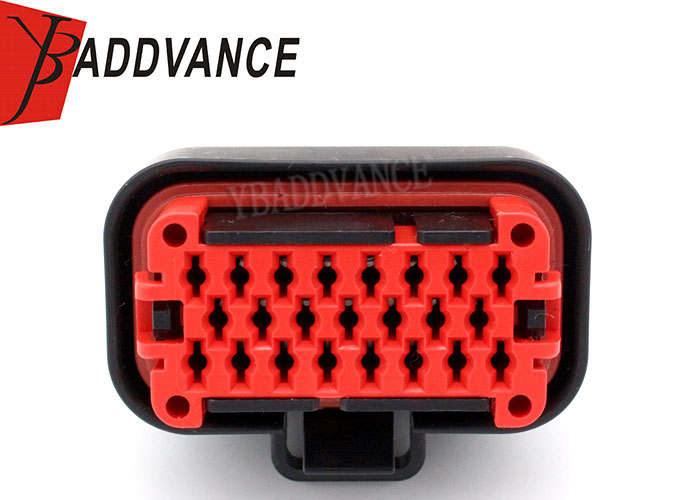

Product Picture Details

23 Pin Amp Connector , TE Connectivity Amp Superseal Connector 770680-1
