2 Hole Tyco AMP Connectors TE Connectivity Ampseal 16 Series 776427-1

Name: 2 Hole Tyco AMP Connectors TE Connectivity Ampseal 16 Series 7764271
Brand: YBADDVANCE
Price: 1 USD

Quality 2 Hole Tyco AMP Connectors TE Connectivity Ampseal 16 Series 776427-1 wholesale

Brand Name : YBADDVANCE

Model Number : 776427-1

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Color : Black

Martial : PBT/PA66

P/N : 776427-1

Way : 2 hole

Gender : Female

HS code : 8536909000

WARRANTY : 1 year

Type : Sealed connector

PLACE OF ORIGIN : Shaanxi,China

Contact Now

2 Hole TE Connectivity Ampseal 16 Series Automotive Connectors 776427-1

Description

2 Hole TE Connectivity Ampseal 16 Series Connectors 776427-1

It is accept up to 2 pins or sockets to make a solid connection between wires which may need to be occasionally disconnected
With a simple and easy to use locking system, these connectors will not be accidentally pulled apart but can easily be released with the flick of a switch.

Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +125°C

Following are YBADDVANCE Connection Type :

Wire to Wire
Wire to Board
Wire to Device

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

These connectors come with the terminals and seals

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Item name	2 Hole TE Connectivity Ampseal 16 Series Automotive Connectors 776427-1
P/N	776427-1
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	2 pin sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	2 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

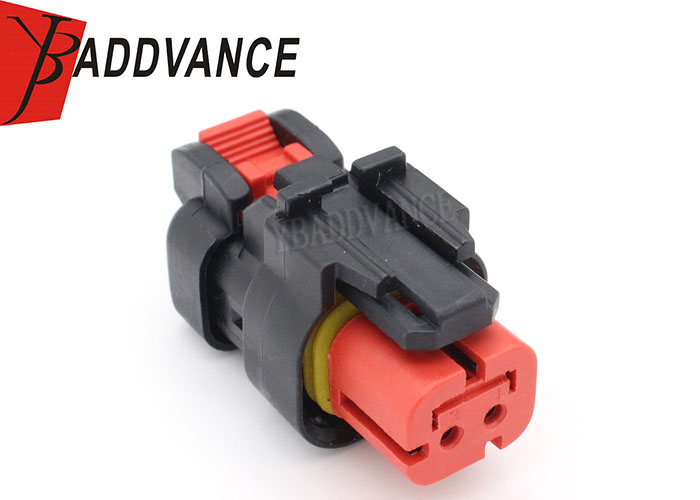

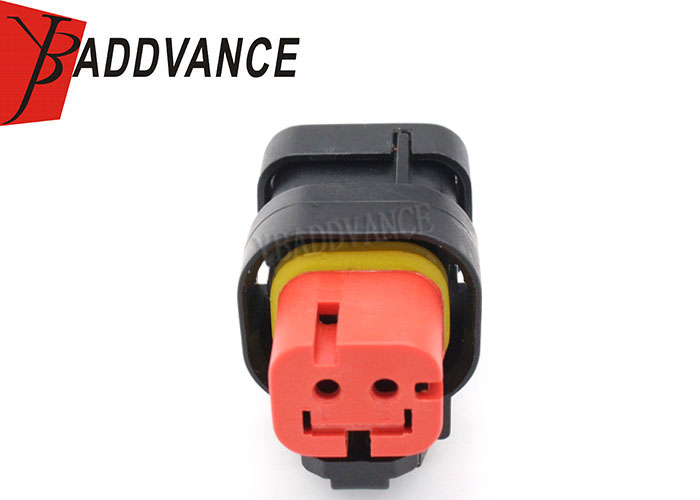

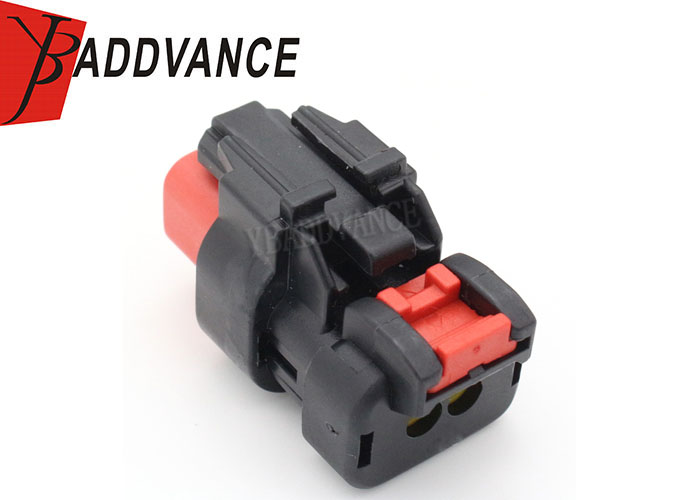

Product Picture Details

2 Hole Tyco AMP Connectors TE Connectivity Ampseal 16 Series 776427-1
