Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 1.5K Series 2-1703639-1

Name: Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 15K Series 217036391
Brand: YBADDVANCE
Price: 1 USD

Quality Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 1.5K Series 2-1703639-1 wholesale

Brand Name : YBADDVANCE

Model Number : 2-1703639-1

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Color : Black

P/N : 2-1703639-1

Martial : PBT/PA66

Feature : Waterproof

Type : TE Connectivity AMP Connectors

HS code : 8536909000

Way : 12 hole

Gender : female

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

12 Way TE Connectivity HDSC Sealed MCP 1.5K Series Receptacle Connector 2-1703639-1

Description

The 1-1703639-1 is a 12-position 2-row black Receptacle Housing used with MCP-series socket contacts. The Heavy Duty sealed connector are clear handling, low mating force with a reliable slide locking mechanism delivered in pre-locked position and integrated secondary locking device.

Height:30.8mm
Width:25.7mm
Depth:54.1mm

They accept AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts and carry up to 40 amps.

A slide lock assists with the mating and unmating process and provides a secure mating connection. The housings feature polarization and keying to prevent mismating and have a low mating force.

HDSCS housings are heavy-duty, environmentally sealed connectors available in five sizes and arrangements from 2 to 18 cavities.They accept AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts and carry up to 40 amps.

Specification

Item name	12 Way TE Connectivity MCP 1.5K Series Receptacle Connector 2-1703639-1
P/N	2-1703639-1
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	12 pin AMP Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	12 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

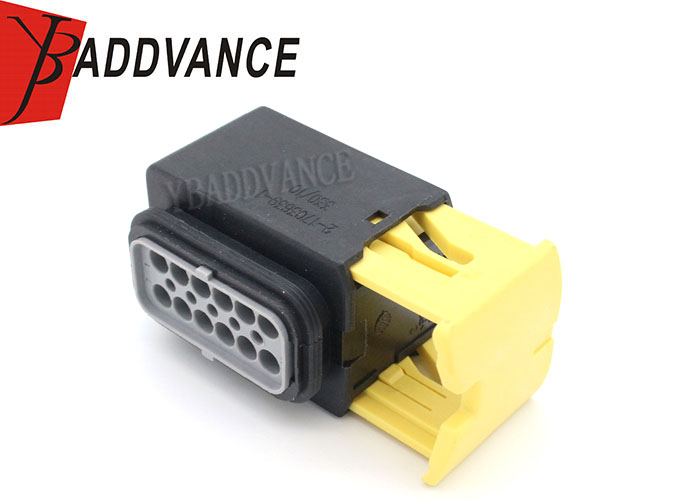

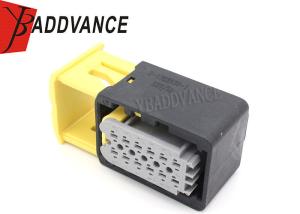

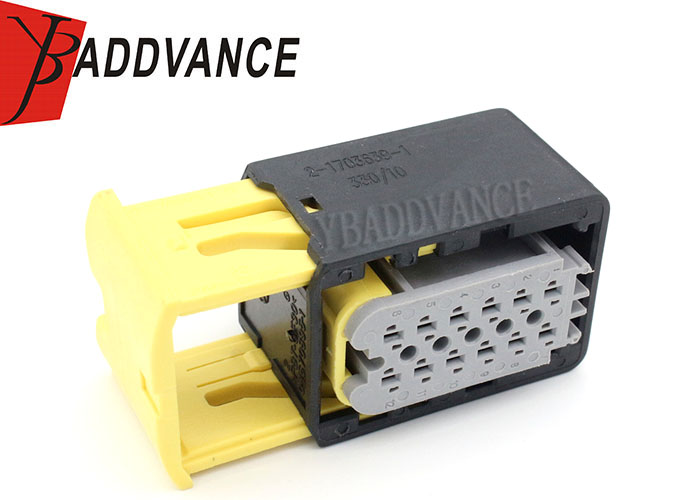

Product Picture Details

Receptacle 12 Way Tyco AMP Connectors HDSC Sealed MCP 1.5K Series 2-1703639-1
