Rectangular Amphenol Deutsch Connectors , 6 Pin Deutsch Connector DT04-6P

Name: Rectangular Amphenol Deutsch Connectors 6 Pin Deutsch Connector DT046P
Brand: YBADDVANCE
Price: 1 USD

Quality Rectangular Amphenol Deutsch Connectors , 6 Pin Deutsch Connector DT04-6P wholesale

Brand Name : YBADDVANCE

Model Number : DT04-6P

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Color : Grey

P/N : DT04-6P

Type : Deutsch connector

Gender : Female

Way : 6 hole

Feature : Waterproof

Martial : PBT/PA66

HS code : 8536909000

Contact Now

Amphenol Deutsch AT-DT Connectors 6 Pin Male Rectangular DT Series Connector DT04-6P

Description

6 Pin Male Gray Rectangular DT Series Sealed Connector

DEUTSCH DT Series environmentally sealed electrical connectors are for critical applications and are designed to withstand the harshest and most challenging environments.

Mating Parts: DT06-6S

Centerline (Pitch) :4.5 mm

Model: Deutsch DT series

Required Wedgelock: W6P
Shape: Rectangular

DEUTSCH DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 DEUTSCH contacts, each with 13-amp continuous capacity.

For the DT Seriese male connector , we have 3 types terminals , please check the above pictures

We have the black color for the same type , if you need it , please contact us

Specification

Item name	6 Pin Male Gray Rectangular DT Series Sealed Connector DT04-6P
P/N	DT04-6P
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	6 pin Deutsch Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	6 way
Color	Grey
Warranty	1 year
Application	Automoive Motorcycles

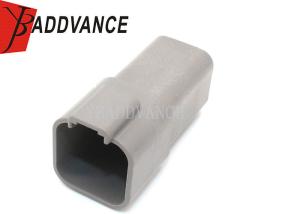

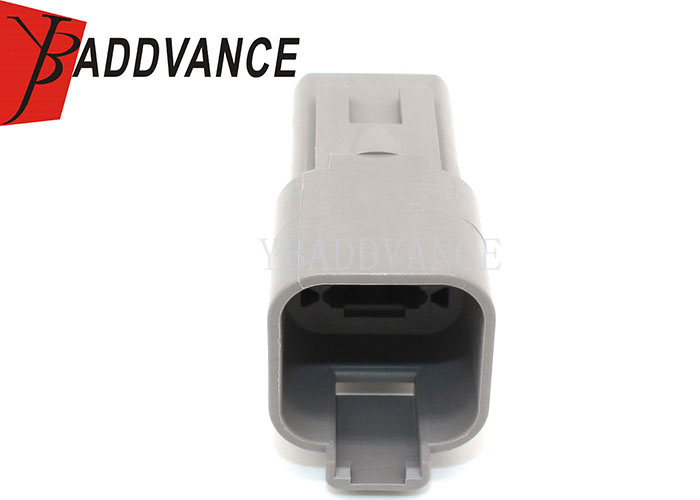

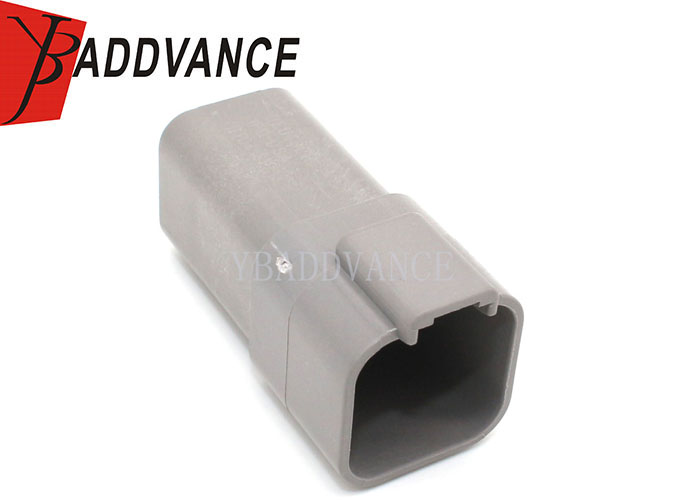

Product Picture Details

Rectangular Amphenol Deutsch Connectors , 6 Pin Deutsch Connector DT04-6P
