3 Pin Female Deutsch Automotive Connectors With Terminal DT06-3S-E005

Name: 3 Pin Female Deutsch Automotive Connectors With Terminal DT063SE005
Brand: YBADDVANCE
Price: 1 USD

Quality 3 Pin Female Deutsch Automotive Connectors With Terminal DT06-3S-E005 wholesale

Brand Name : YBADDVANCE

Model Number : DT06-3S-E005

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Martial : PBT/PA66

Gender : Female

Color : Black

Way : 3 hole

Type : deutsch DT series connectors

HS code : 8536909000

Feature : Waterproof

P/N : DT06-3S-E005

Contact Now

3 Pin Female Deutsch DT Series Connector with Terminal DT06-3S-E005

Description

3 Pin Female Deutsch DT Series Connector with Terminal

Height : 29.64 mm

Width : 23.876 mm

Length : 18.7 mm

Current Rating: 13A

Mating Pin Diameter : 1.5 mm
Centerline (Pitch) : 8.7 mm

Required Wedgelock: W3S

The wide range of sizes, cavities and available specialized modifications makes the Deutsch DT series perfect for use in automotive and marine wiring harness systems, industrial equipment wiring, and any wiring installation where reliability and servicability are primary concerns.

Specification

Item name	3 Pin Female Deutsch DT Series Connector with Terminal DT06-3S-E005
P/N	DT06-3S-E005
Wire Size	14-20AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	3 pin waterproof Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	3 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

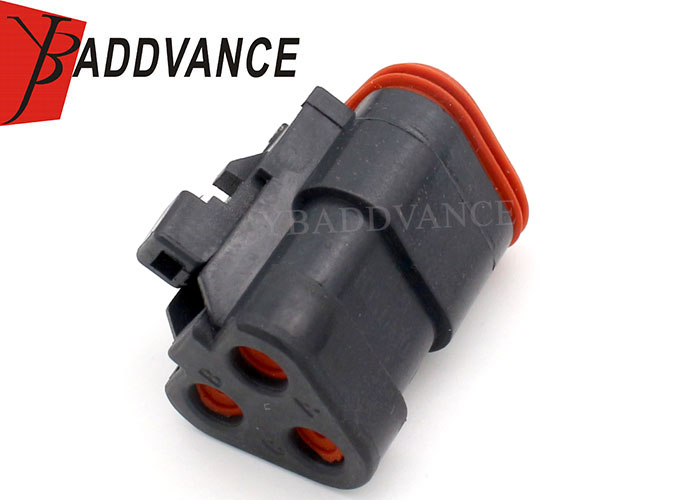

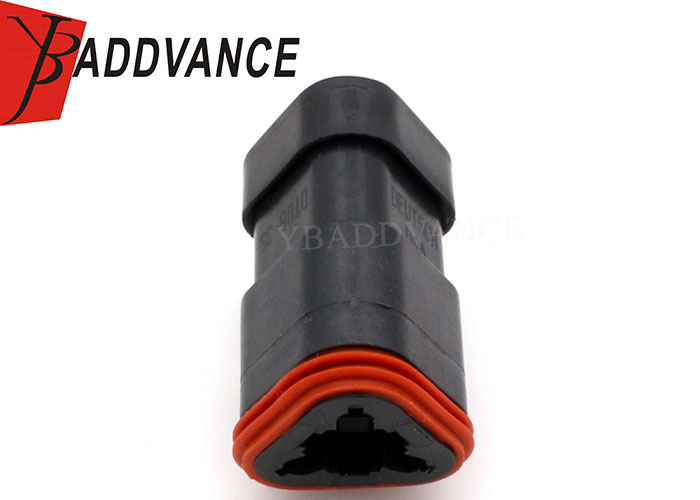

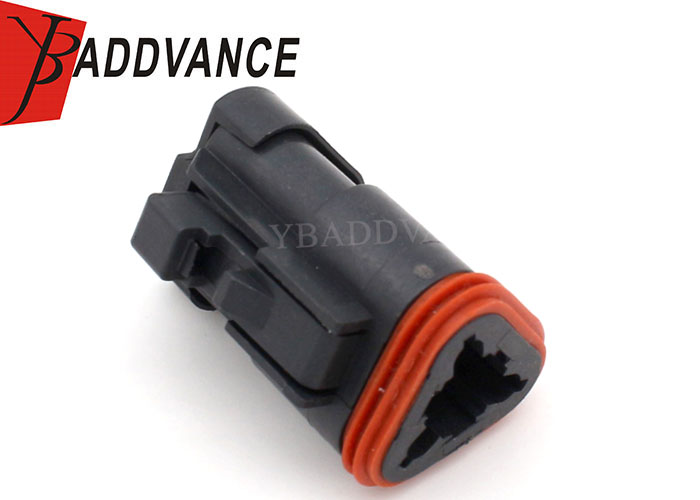

Product Picture Details

3 Pin Female Deutsch Automotive Connectors With Terminal DT06-3S-E005
