Name: Mini DTM Deutsch Connector TE Deutsch Connectors DTM068S ATM068S
Brand: YBADDVANCE
Price: 1 USD

Brand Name : YBADDVANCE

Model Number : DTM06-8S

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : DTM06-8S ATM06-8S

Type : Deutsch connector

Gender : Female

Number of Contacts : 8

Way : 8 Pin

Wedge Lock Part# : WM8S

HS code : 8536909000

name : 8 pin deutsch connector

Contact Now

TE Deutsch Connectors Mini DTM Series Plug DTM06-8S ATM06-8S

Description

DTM06-8S 8 way 8-Pin female Plug DTM Deutsch Mini Series with assembly kits together.

Deutsch DTM Series
Includes DTM Series Wedge Lock(WM-8S)
Includes 8 Mini Female Sockets(0462-201-20141) Or (1062-20-0222)

Specification

Item name	DTM Series 8 Pin female connector
P/N	DTM06-8S ATM06-8S
Wire Size	20-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	8 Pin dtm female connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	8 way
Color	Gray
Warranty	1 year
Note	Rated for 7.5 AMP

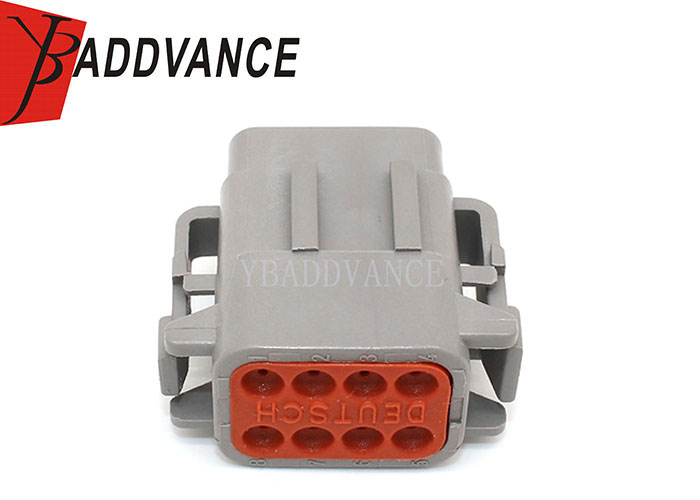

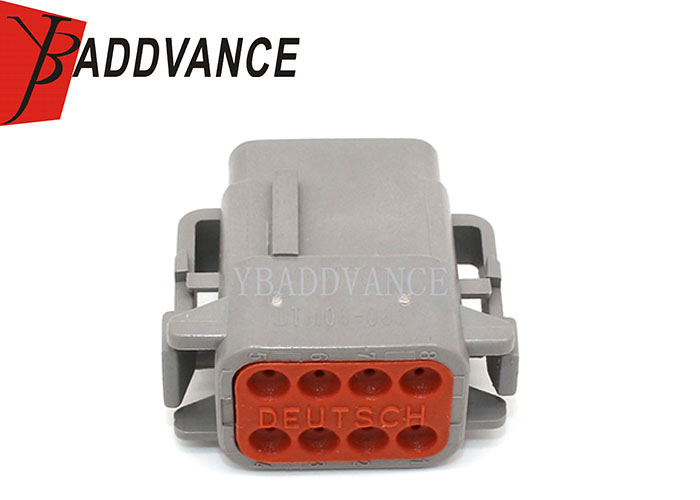

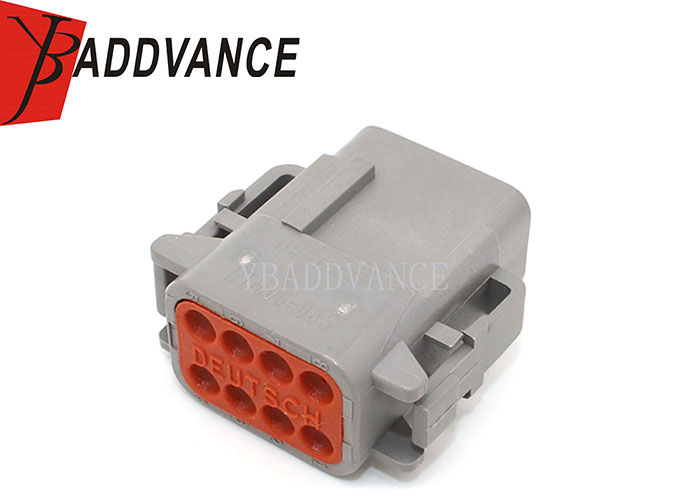

Product Picture Details

Mini DTM Deutsch Connector , TE Deutsch Connectors DTM06-8S ATM06-8S
