HD16-9-1939S TE Connectivity Circular Connectors 9 Position With Coupling Ring

Name: HD1691939S TE Connectivity Circular Connectors 9 Position With Coupling Ring
Brand: YBADDVANCE
Price: 1 USD

Quality HD16-9-1939S TE Connectivity Circular Connectors 9 Position With Coupling Ring wholesale

Brand Name : YBADDVANCE

Model Number : HD16-9-1939S

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Gender : Female

Martial : PBT/PA66

Color : Black

P/N : HD16-9-1939S

Way : 9 hole

Feature : Waterproof

HS code : 8536909000

Type : Deutsch connector

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

HD16-9-1939S 9 Position Circular TE Connectivity Connector with Coupling Ring

Description

9 Position Circular TE Connectivity Connector with Coupling Ring

It is Universal Diagnostic Connector

Flange/In-line/PCB Mount: In-line

Series : HD10 Series

Shell Size : Insert 9-39

Height: 41.46 mm
Length: 40.36 mm
Width: 40.39 mm

Mating connector: HD10-9-1939P

Mating Pin Diameter : 1.5 mm

The HD10 Connectors are cylindrical and are quickly and easily inserted and removed eliminating problems associated with assembly and maintenance time.

HD10 Series is heavily used for diagnostic connectors, eliminates problems associated with assembly and maintenance time, and is designed for long service life.

Specification

Item name	HD16-9-1939S 9 Position Circular TE Connectivity Connector with Coupling Ring
P/N	HD16-9-1939S
Wire Size	14-20AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	9 pin waterproof Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	9 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

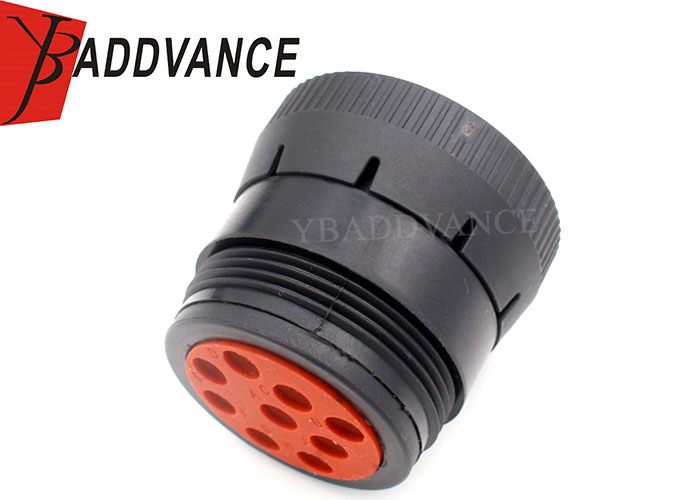

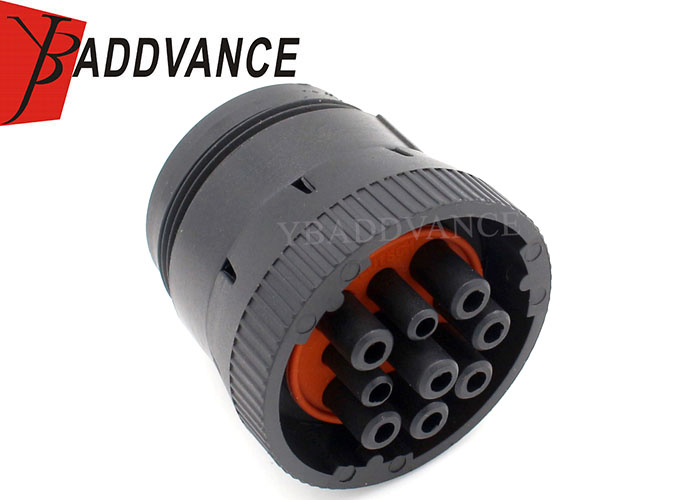

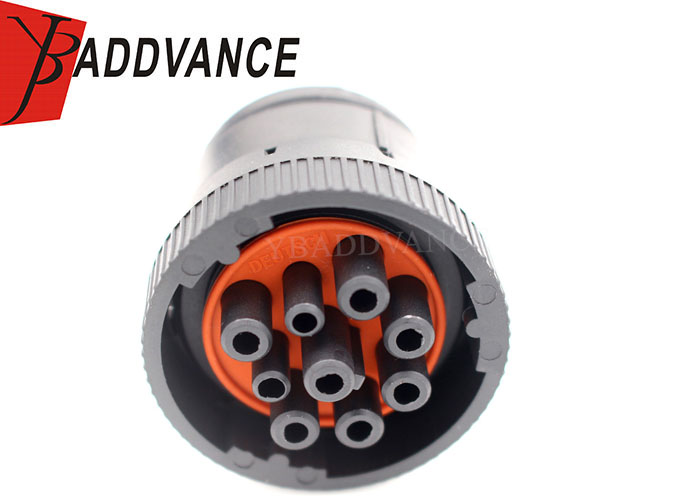

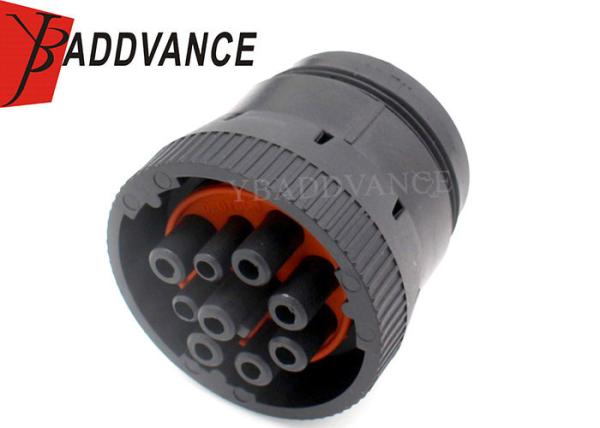

Product Picture Details

HD16-9-1939S TE Connectivity Circular Connectors 9 Position With Coupling Ring
