DT04-6P-E005 Deutsch Automotive Connectors / 6 Pin Male Deutsch Connector

Name: DT046PE005 Deutsch Automotive Connectors 6 Pin Male Deutsch Connector
Brand: YBADDVANCE
Price: 1 USD

Quality DT04-6P-E005 Deutsch Automotive Connectors / 6 Pin Male Deutsch Connector wholesale

Brand Name : YBADDVANCE

Model Number : DT04-6P-E005

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Gender : Male

Martial : PBT/PA66

Color : Black

P/N : DT04-6P-E005

Way : 6 hole

Feature : Waterproof

HS code : 8536909000

Type : Deutsch connector

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

DT04-6P-E005 6 Pin Male Deutsch DT Series Receptacle Connector

Description

6 Pin Male Deutsch DT Series Receptacle Connector

Height : 47.45 mm

Width : 24.69 mm

Length : 20.83 mm

Mating Pin Diameter : 1.5 mm
Centerline (Pitch) : 4.5 mm

Wire Size: 14, 16, 18, 20
Required Wedgelock: W6P

Series : Deutsch CAT DT Series. Meets Caterpillar Specifications.

6 circuit receptacle housing with protective end cap.

It including the male wedge and pins.

DEUTSCH DT housings are available in 2, 3, 4, 6, 8, and 12 pin counts and use size 16 DEUTSCH contacts, each with 13-amp continuous capacity.

Specification

Item name	DT04-6P-E005 6 Pin Male Deutsch DT Series Receptacle Connector
P/N	DT04-6P-E005
Wire Size	14-20AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	6 pin waterproof Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	6 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

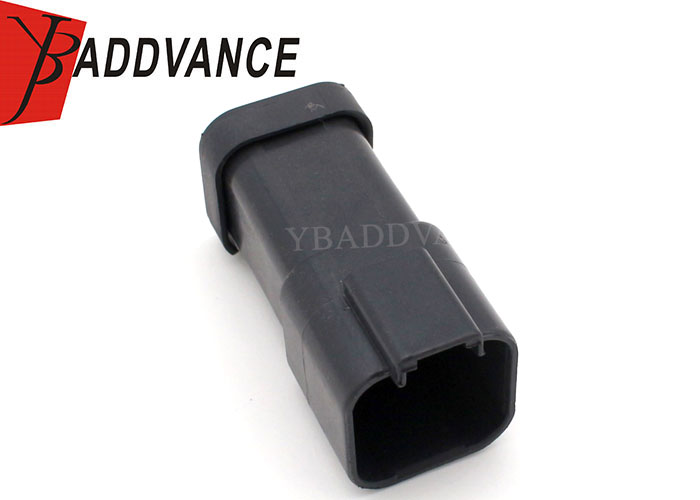

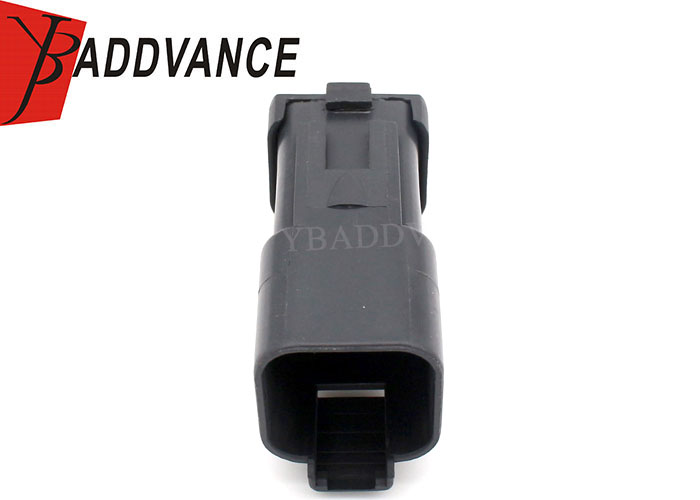

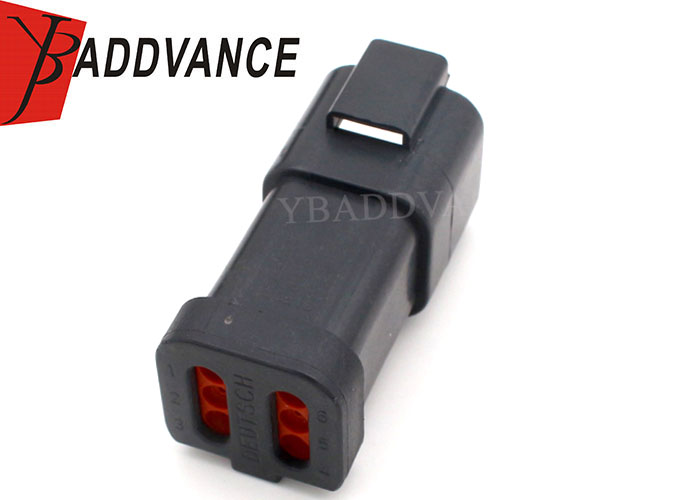

Product Picture Details

DT04-6P-E005 Deutsch Automotive Connectors / 6 Pin Male Deutsch Connector

Product Tags:

deutsch dt series connectors

te connectivity deutsch connectors

DT04-6P-E005 Deutsch Automotive Connectors / 6 Pin Male Deutsch Connector Images
