12 Pin Male DTM Series Receptacle Housing Connector DTM04-12P ATM04-12P

Name: 12 Pin Male DTM Series Receptacle Housing Connector DTM0412P ATM0412P
Brand: YBADDVANCE
Price: 1 USD

Quality 12 Pin Male DTM Series Receptacle Housing Connector DTM04-12P ATM04-12P wholesale

Brand Name : YBADDVANCE

Model Number : DTM04-12P

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Color : Grey

P/N : DTM04-12P

Type : Deutsch connector

Gender : Female

Way : 12 hole

Feature : Waterproof

Martial : PBT/PA66

HS code : 8536909000

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

12 Pin Male DTM Series Receptacle Housing Connector DTM04-12P

Description

12 Pin Male DTM Series Receptacle Housing Connector

Wedgelock: WM-12P
Terminals: 0460-202-20141

Series : DTM-Series
Configuration : 12 Way Receptacle Housing + 1 Wedgelock+12 terminals +12 wire seals
Wire Range : 20-16 Awg
Material : Thermoplastic Housing / Silicone Rubber Grommet
Amperage : 7.5 Amp Continuous Capacity per Contact
Temperature : continuous duty from -67°F to 221°F (-55°C to 105°C)
The DTM connector housing is used in harsh environment applications where even a small degradation in connection may be critical.

The DTM connector line was developed to fill the need for lower amperage, multi-pin, inexpensive connectors.
Thermoplastic housings offer a wide operating temperature range and silicone rear wire and interface seals allow the connectors to withstand conditions of extreme temperature and moisture.

Specification

Item name	12 Pin Male DTM Series Receptacle Housing Connector DTM04-12P
P/N	DTM04-12P
Wire Size	20-22AWG
Operating Temperature range	-55℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	12 pin Deutsch Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	12 way
Color	Grey
Warranty	1 year
Application	Automoive Motorcycles

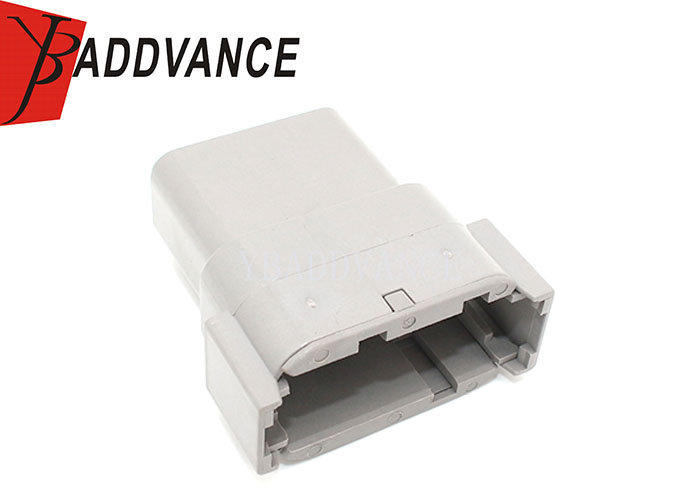

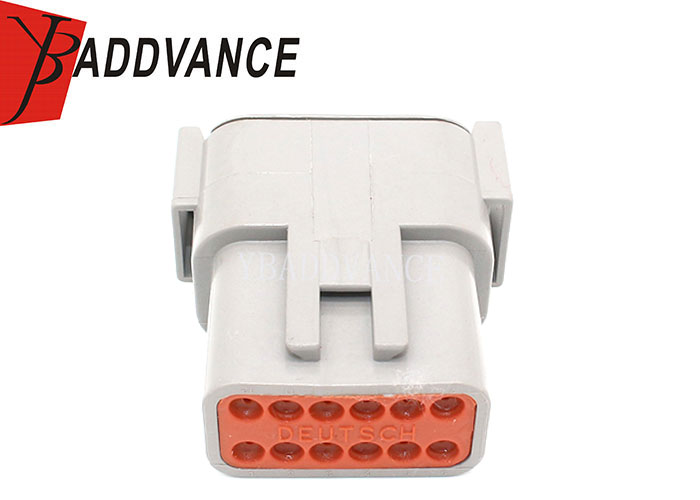

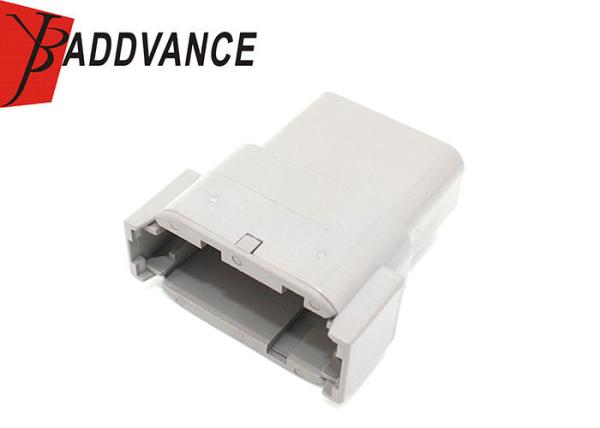

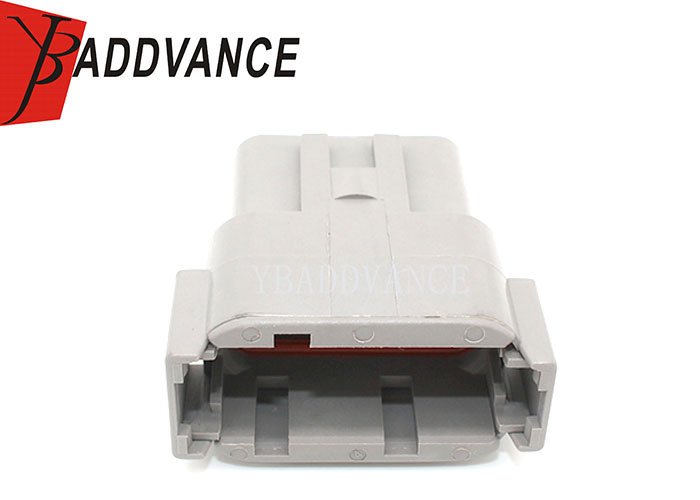

Product Picture Details

12 Pin Male DTM Series Receptacle Housing Connector DTM04-12P ATM04-12P
