Sumitomo MT 090 2 Pin Top Slot Denso Injector Plug Gray Color 6189-0060

Name: Sumitomo MT 090 2 Pin Top Slot Denso Injector Plug Gray Color 61890060
Brand: YBADDVANCE
Price: 1 USD

Quality Sumitomo MT 090 2 Pin Top Slot Denso Injector Plug Gray Color 6189-0060 wholesale

Brand Name : YBADDVANCE

Model Number : 6189-0060

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

Martial : PBT/PA66

Color : Grey

P/N : 6189-0060

HS code : 8536909000

Way : 2 hole

Type : Sealed connector

Gender : Female

Feature : Waterproof

Contact Now

Sumitomo MT 090 Series 2 Pin Top Slot Denso Injector Connector Gray 6189-0060

Description

2 Pin Female Electrical Sealed Fuel Injector Connectors

The connector has an integral rubber seal to prevent moisture from seeping in and compromising the connection

Height :21.8 mm

Width:22 mm

Length:31 mm

The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C -120°C.

Applications - Denso injector connector

H onda,Y amaha,S uzuki, Kawasaki injectors

CBR600 - CBR1000 - S ubaru - oyota

Specification

Item name	2 Pin Female Electrical Sealed Fuel Injector Connectors 6189-0060
P/N	6189-0060
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	2 pin sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	2 way
Color	Grey
Warranty	1 year
Application	Automoive Motorcycles

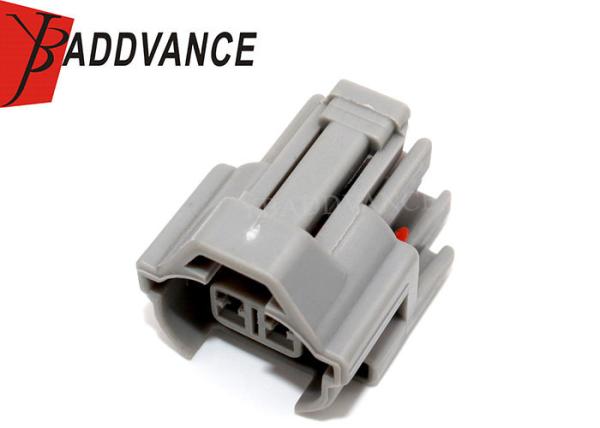

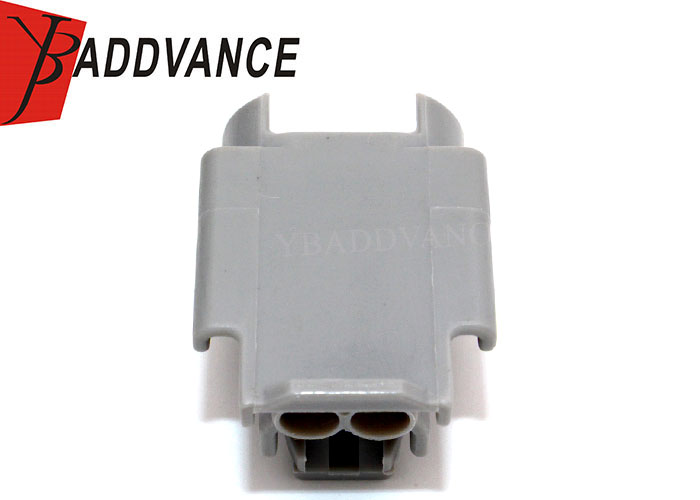

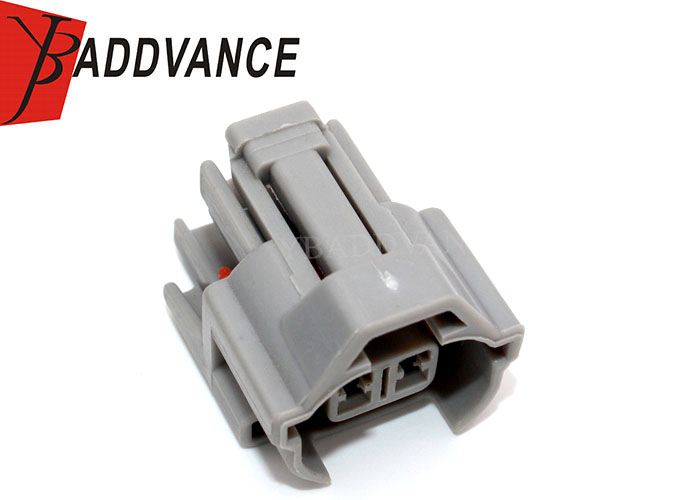

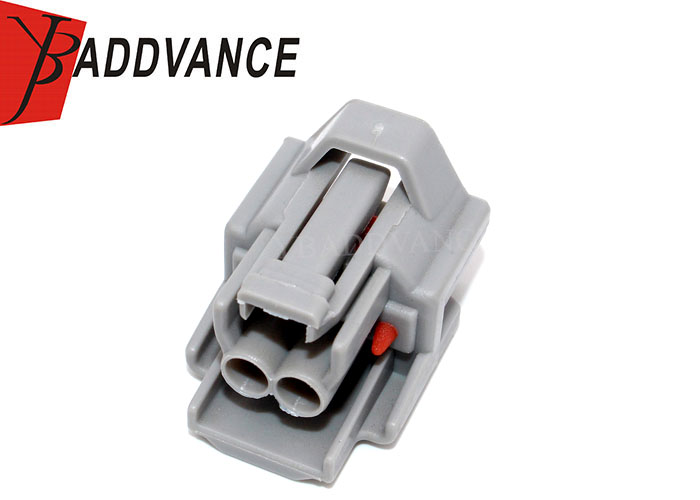

Product Picture Details

Sumitomo MT 090 2 Pin Top Slot Denso Injector Plug Gray Color 6189-0060

Product Tags:

fuel injector plug

fuel injector adapter

Sumitomo MT 090 2 Pin Top Slot Denso Injector Plug Gray Color 6189-0060 Images
