6189-0848 5 Pin Male Connector , Sumitomo Automotive Connectors For Nissan

Name: 61890848 5 Pin Male Connector Sumitomo Automotive Connectors For Nissan
Brand: YBADDVANCE
Price: 1 USD

Quality 6189-0848 5 Pin Male Connector , Sumitomo Automotive Connectors For Nissan wholesale

Brand Name : YBADDVANCE

Model Number : 6189-0848

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 6189-0848

Martial : PBT/PA66

Color : Grey

Gender : Female

Way : 5 hole

Feature : Waterproof

HS code : 8536909000

Type : Sumitomo connector

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

6189-0848 5 Pin Male Sumitomo Ignition Coil Connector for Nissan

Description

5 Pin Male Sumitomo Ignition Coil Connector for Nissan

The connector used for Nissan

1 Row, 5 Way

It come with : 1 housing connector +5 Terminals +5 Seals
Material

Housing: PA66
Lock: PA66
Terminal: Brass/Phosphor Bronze/
Seal: Silicon Rubber

Please check the picture carefully before you purchase it .

Specification

Item name	6189-0848 5 Pin Male Sumitomo Ignition Coil Connector for Nissan
P/N	6189-0848
Wire Size	18-20AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	5 pin waterproof Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	5 way
Color	Grey
Warranty	1 year
Application	Automoive Motorcycles

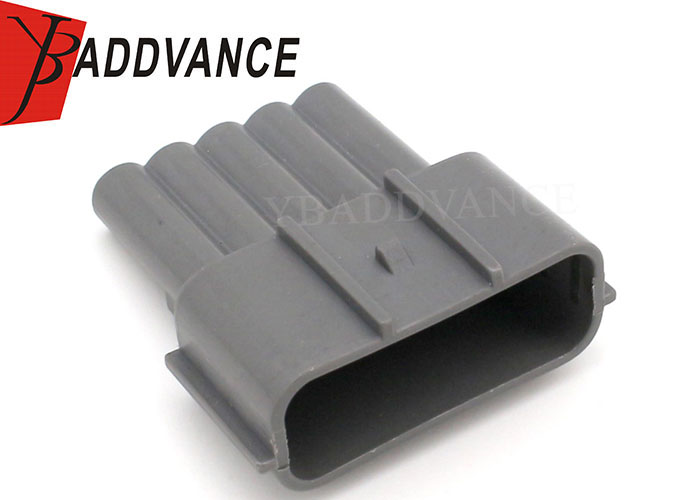

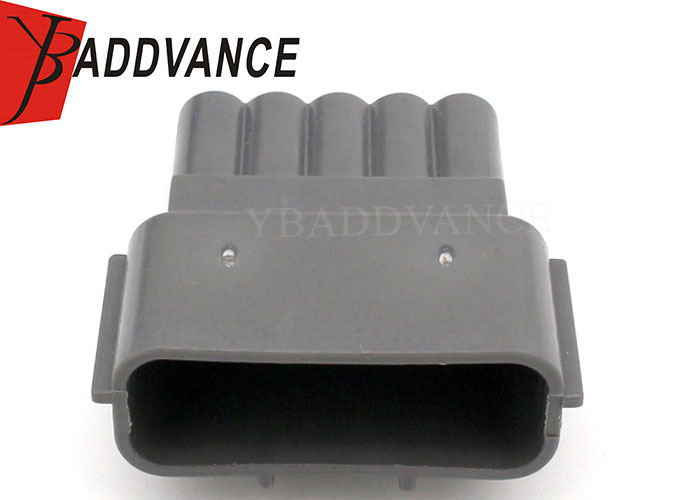

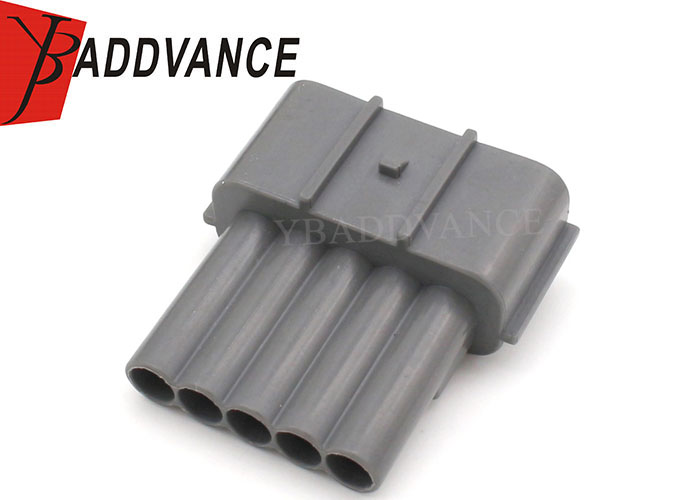

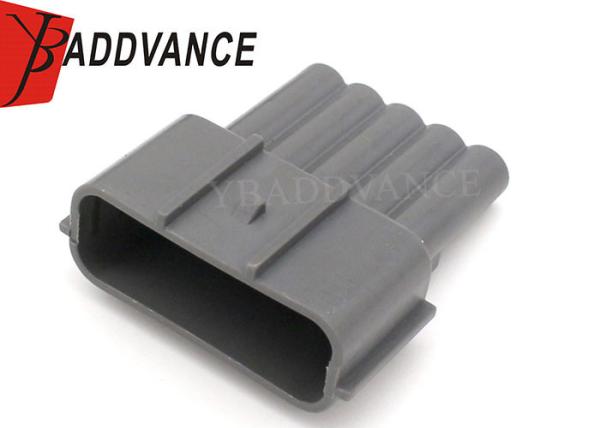

Product Picture Details

6189-0848 5 Pin Male Connector , Sumitomo Automotive Connectors For Nissan
