187 Series 4P Female Receptacle Connector Housing 7283-7043-40

Name: 187 Series 4P Female Receptacle Connector Housing 7283704340
Brand: YBADDVANCE
Price: 1 USD

Quality 187 Series 4P Female Receptacle Connector Housing 7283-7043-40 wholesale

Brand Name : YBADDVANCE

Model Number : 7283-7043-40

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 7283-7043-40

Color : Black

Martial : PBT/PA66

Type : Suzuki connector

Feature : Waterproof

HS code : 8536909000

Way : 4 hole

Application : Automotive Car

WARRANTY : 1 year

PLACE OF ORIGIN : Shaanxi,China

Contact Now

4.8(187) Connectors Housing 4P Female Waterproof Automotive Connector

Description

Connection Type

Wire to Wire
Wire to Board
Wire to Device

These connectors are perfect to use in Suzuki Motorcycles.
Uses an Open Barrel Crimper tool for crimping, or you can also use needle nose pliers and crimp one wing at a time.
You can also select to have us pre-attach wire to each terminal, for easy splicing.
Set Includes: terminals and seals

Fits wires from 0.5mm - 1.2mm (18 - 22 AWG)

These are replacement high quality parts. Not cheap imitations.

High quality items at very reasonable price,excellent high quality products all tested to ensure correct fitment and for quality assurance

Specification

Item name	4 Pin Waterproof Electrical Automotive Housing Connector With Terminals
P/N	7283-7043-40
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	4 pin suzuki connectors
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	4 hole
Color	Black
Warranty	1 year
Application	Suzuki Motorcycles

Product Picture Details

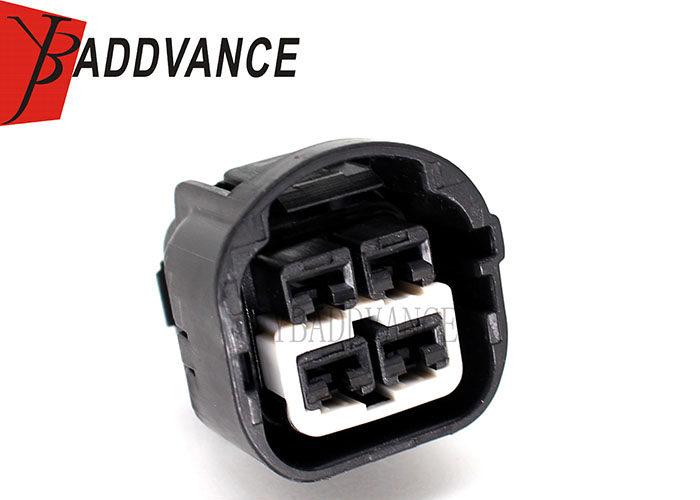

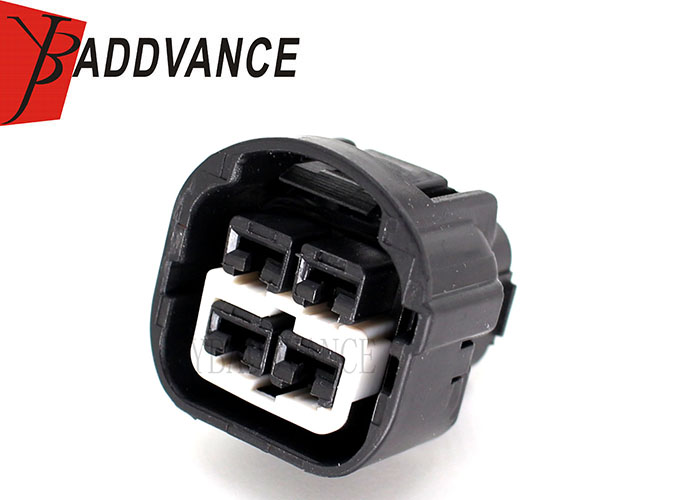

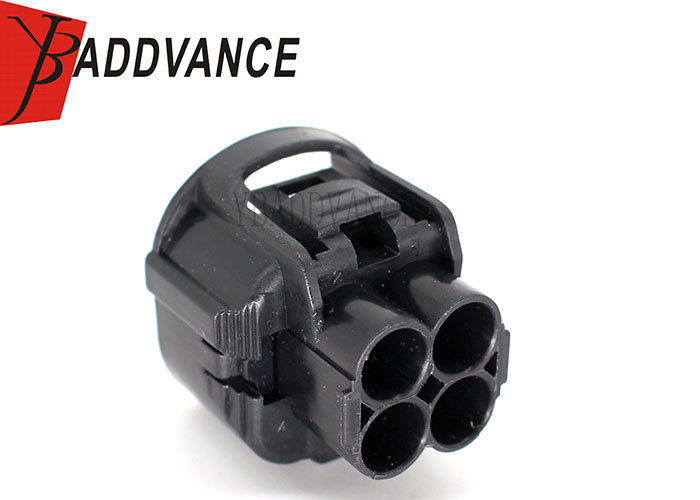

187 Series 4P Female Receptacle Connector Housing 7283-7043-40
