Deutsch DT06-08SC 8 Pin Female Automotive Connector With C Position Key

Brand Name : YBADDVANCE

Model Number : DT06-08SC

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : negotiation

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

No. of Positions : 8-Way C Position Key

Amperage : 13

Contact Size : 16

Contact type : Socket

AWG : 14-20

Color : Green

Seal Diameter : 053" - .120"

IP Rating : IP67

Contact Now

Deutsch DT06-08SC 8 Pin Female Automotive Connector With C Position Key

Description

8 Pin Female Automotive Connector With C Position Key

This part come with the following types:

Temperature Range: -55°C to +125°C
Dielectric Value: 1500V minimum
Insulation Resistance: 1000 megohms at 25°C
Mating Cycle Durability: >100
Housing Material: Thermoplastic
Seal Material: Silicone Elastomer
Mating Part: AT04-08PC* Receptacle
Wedge Part#: AW8S
RoHS Compliant : Yes
Wire Range: 14-20 AWG

Shipping by:DHLUPSFedexEMSARAMEX

This connector kits included the following:
1 x connector housing
8 x crimpe terminal

1 x wire seal

Specification

Product Name 8 Pin Female Automotive Connector With C Position Key
Delivery Time About 7-8 days
Way 8 Way
Wire Size 16-22AWG
P/N DT06-08SC
MOQ 100 units/lot
Sealed/Unsealed Sealed
Gender Female
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
Design Ability Please send us drawing or samples to design OEM&ODM
Quality Control All goods will be 100% inspected before shipment
Operating Temperature range -40~120
Contact resistance nitial8m Max.after durability tests16m Ma
Leak current Initial50kPa Min.after durability tests30kPa Min.
Main products Electrical Connectors,wire harnesses and fuel injector repair kits.
Insulation resistance 100MΩ Min.
Including Connector housing,terminals,rubber seals
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Material PBT,Plastic PA66,pbt gf30 and so on...
Market Germany,Finland,UK,USA,CANADA,ITALY and so on..

Hot Products

Deutsch Connector Color Pin Number Gender Series
DT04-3P Grey 3 Pin Male Connector DT
DT06-3S Grey 3 Pin Female Connector DT
DT04-3P-C017 Grey 3 Pin Male Connector DT
DT06-3S-CE05 Black 3 Pin Female Connector DT
DT06-3S-CE02 Black 3 Pin Female Connector DT
DT06-3S-PP01 Balck 3 Pin Female Connector DT

More details about pictures

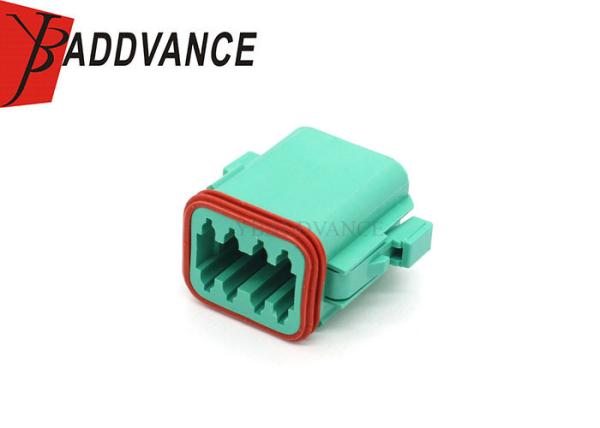

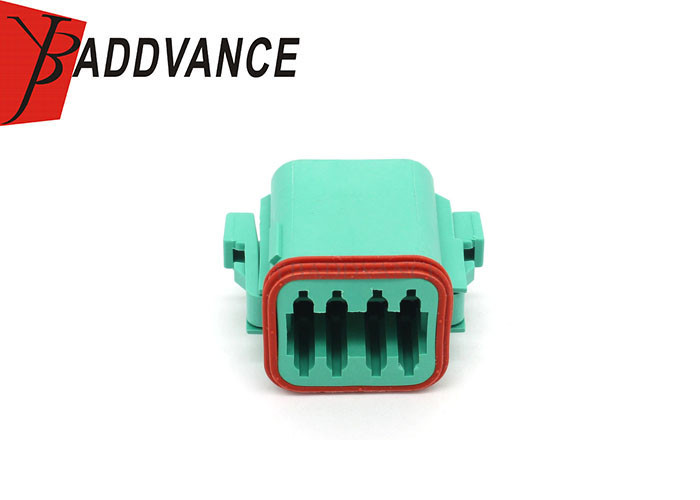

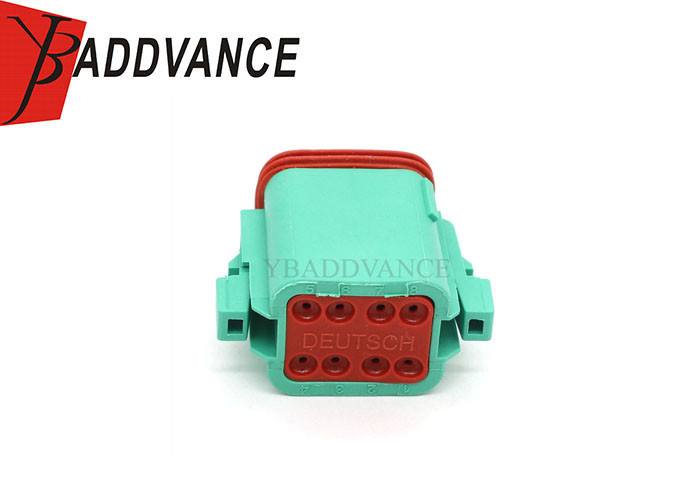

Deutsch DT06-08SC 8 Pin Female Automotive Connector With C Position KeyDeutsch DT06-08SC 8 Pin Female Automotive Connector With C Position Key
