6189-1092 90980-12326 Waterproof Sumitomo Sealed Connectors 13 Pin Female

Brand Name : YBADDVANCE

Model Number : 6189-1092 90980-12326

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : negotiation

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Number of Positions : 13 Pin

Part-No. : 6189-1092 90980-12326

Application : For auto

Sealed/Unsealed : Sealed

STYLE : Sumitomo Connectors

Color : Gray

Gender : Female housing

Warranty : One Year

Contact Now

6189-1092 90980-12326 Waterproof 13 Pin Female Sumitomo Connector Gray Color

Specification

Sealed/Unsealed Sealed
Color Gray
Material PBT,Plastic PA66,pbt gf30 and so on...
Quality Control All goods will be 100% inspected before shipment
Wire Size 16-22AWG
P/N 6189-1092 90980-12326
Operating Temperature range -40~120
Contact resistance Initial8m Max.after durability tests16m Ma
Leak current Initial50kPa Min.after durability tests30kPa Min.
Insulation resistance 100MΩ Min.
MOQ 100 units/lot
Product Name 13 Pin Female Sumitomo Connector Gray Color
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Way 13 Way
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Gender Female
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 1.5kgs/100 pieces
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

Description

This part come with the following types:


Brand: YBADDVANCE
Connector Style : Sumitomo Connector
0.64mm(025)
Male/Female:F
Number of Poles: 13
Other parts: 6188-4914(TS waterproof series)
Material: PBT
Color: Gray
Contact Resistance: Initial> 8 Mohm maximum durability> 16 Mohm maximum
Leakage current: 50μA maximum
Insulation Resistance: 100 Mohm minimum

Hot products

TE Connector Gender Pin number
0-2112986-1 A Female Connector 2 Pin
0-2112986-2 A Female Connector 2 Pin
0-2236114-1 B Female Connector 2 Pin
1-1924067-4 Female Connector 2 Pin
1-2296694-3 Female connector 2 Pin
1-1924067-6 Female Connector 2 Pin
2-2112986-5 A Female Connector 2 Pin
So on.. ... ...

More details about pictures

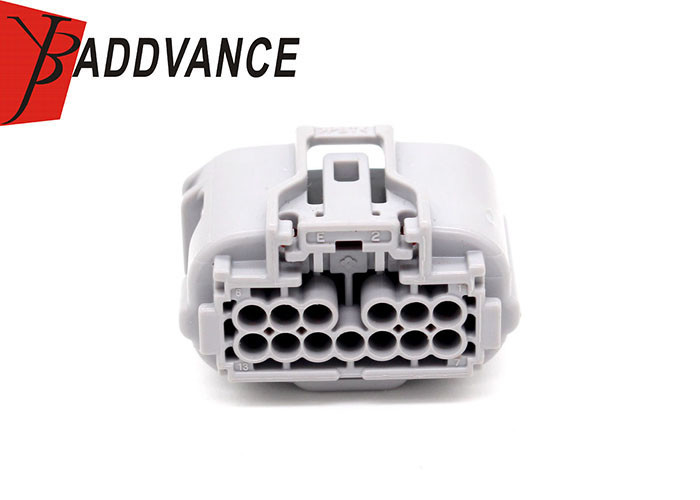

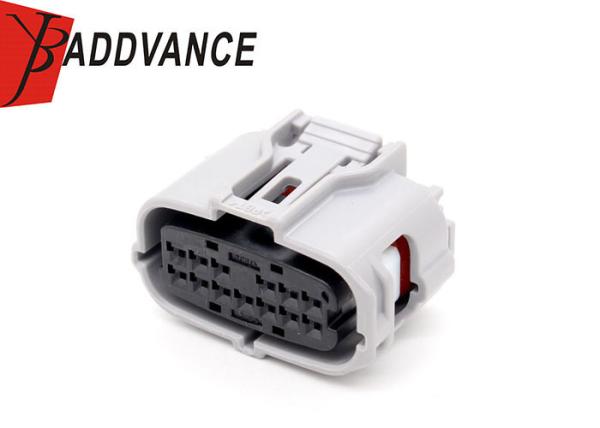

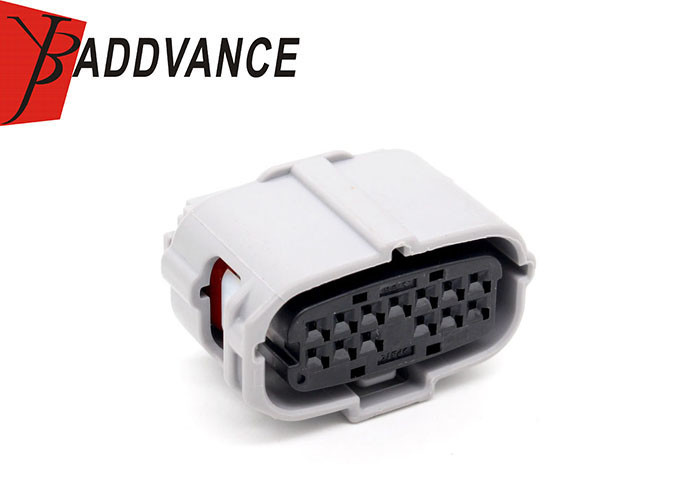

6189-1092 90980-12326 Waterproof Sumitomo Sealed Connectors 13 Pin Female6189-1092 90980-12326 Waterproof Sumitomo Sealed Connectors 13 Pin Female
