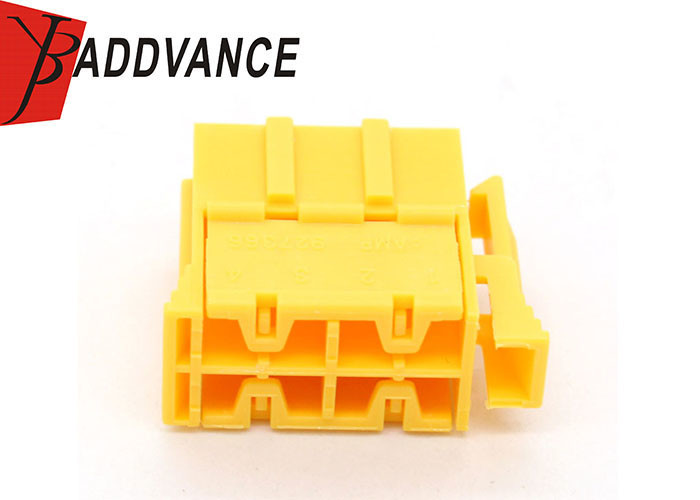

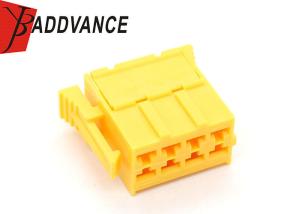

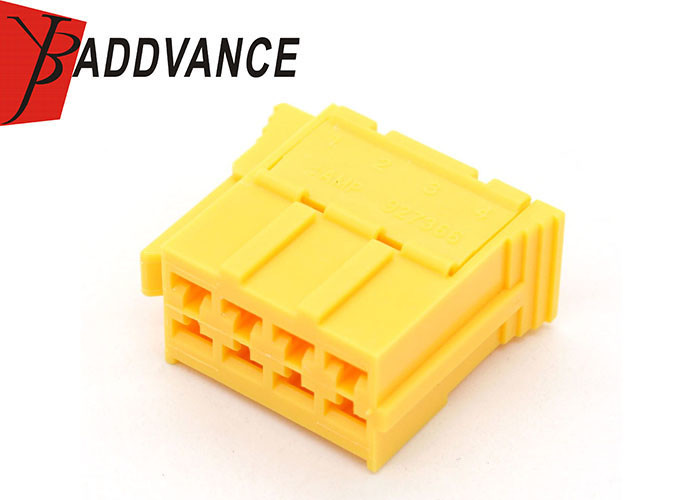

927366-1 8 Pin Female Tyco AMP Connectors Junior Power Timer Connector

Product Categories
Xi'An YingBao Auto Parts Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

927366-1 8 Pin Female Tyco AMP Connectors Junior Power Timer Connector

Brand Name : YBADDVANCE

Model Number : 927366-1

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : negotiation

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Application : For Auto

Part-No. : 927366-1

Gross weight : 1.5kgs/100pcs

Sealed/Unsealed : Sealed

Gender : Female

Pin : 8 Pin

HS CODE : 8536909000

STYLE : AMP connector

Color : Yellow

Warranty : One Year

Contact Now

927366-1 8 Pin Female AMP Tyco Junior Power Timer Series Connector

Specification

Gender Female
Material PBT,Plastic PA66,pbt gf30 and so on...
Quality Control All goods will be 100% inspected before shipment
Wire Size 16-20AWG
Way 8 Way
Operating Temperature range -40~120
P/N 927366-1
Contact resistance Initial8m Max.after durability tests16m Ma
Leak current Initial50kPa Min.after durability tests30kPa Min.
Insulation resistance 100MΩ Min.
Product Name 8 Pin Female AMP Tyco Junior Power Timer Series Connector
MOQ 100 units/lot
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Color Yellow
Replacement Brand TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 1.5kgs/100 pieces
Sealed/Unsealed Sealed
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

Description

927366-1 8 Pin Female AMP Tyco Junior Power Timer Series Connector

This part come with the following types:

Connector: 1 Way TE Connectivity Circular Power Connector

Physical
Color :Yellow
Housing Material :Polyamide
Mount Cable, Free Hanging
Technical
Circuit Application Signal
Connector Type Plug, Tab
Gender Male
Hybrid Connector No
Number of Contacts 8
Number of Rows 2
Orientation Straight
Packaging Bulk
Polarized Yes
Serviceable No
Termination Crimp
Dimensions
Height 23 mm
Length 28.8036 mm
Mating Tab Width 2.794 mm
Pitch 5.08 mm
Row Spacing 5.08 mm
Width 13.7922 mm

Application:For auto
