0-1452584-8 1 Pin Female Automotive Electrical Connectors Red Color With Terminals

Name: 014525848 1 Pin Female Automotive Electrical Connectors Red Color With Terminals
Brand: YBADDVANCE
Price: 1 USD

Quality 0-1452584-8 1 Pin Female Automotive Electrical Connectors Red Color With Terminals wholesale

Brand Name : YBADDVANCE

Model Number : 0-1452584-8

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : negotiation

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Pin : 1 pin

Part-No. : 0-1452584-8

Gender : Female

Color : Red

Gross weight : 1.5kgs/100pcs

Application : For auto

Sealed/Unsealed : Unsealed

STYLE : Automotive Electrical Connectors

Contact Now

0-1452584-8 1 Pin Female Automotive Connector Red Color With Terminals

Description

1 Pin Female Automotive Connector Red Color With Terminals

This part come with the following types:

Connector: Gray male connector housing

Number of Positions:1 Position

Included: socket

Terminal:1 Male

Allowable Current(Ref.) 10A(Ref)

Low Level Contact Resistance 3milli ohm Max.(Initial)

Insulation Resistance 100Megohm Min.(at 500VDC)

Withstanding Voltage 1000V AC (1min.)

Temperature Range*9 -40 to 100deg.C

Number of Rows:1 Row

Specification

Product Name	Automotive Electrical Connectors
Delivery Time	About 3-7 days
Way	1 Way
Wire Size	16-22AWG
P/N	0-1452584-8
Gender	Male
MOQ	100 units/lot
Sealed/Unsealed	Unsealed
Color	Red
Gross weight	1.5kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
Design Ability	Please send us drawing or samples to design OEM&ODM
Quality Control	All goods will be 100% inspected before shipment
Operating Temperature range	-40~120
Contact resistance	Initial8m Max.after durability tests16m Ma
Leak current	Initial50kPa Min.after durability tests30kPa Min.
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Insulation resistance	100MΩ Min.
Including	Connector housing,terminals,rubber seals
Replacement Brand	TE/AMP,Sumitomo,bosh,delphi,kostal,FCI,FEP,furukawa and so on..
Material	PBT,Plastic PA66,pbt gf30 and so on...
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...

Hot products

AMP Connector	Gender	Pin number
4-1437290-0	Female Connector	34 Pin
282087-1	Female Connector	3 Pin
174352-2	Female Connector	2 Pin
1-1418390-1	Female Connector	4 Pin
2005210-2	Female Connector	68 Pin
174877-2 / 174352-2	Female connector	1 Pin
So on..	...	...

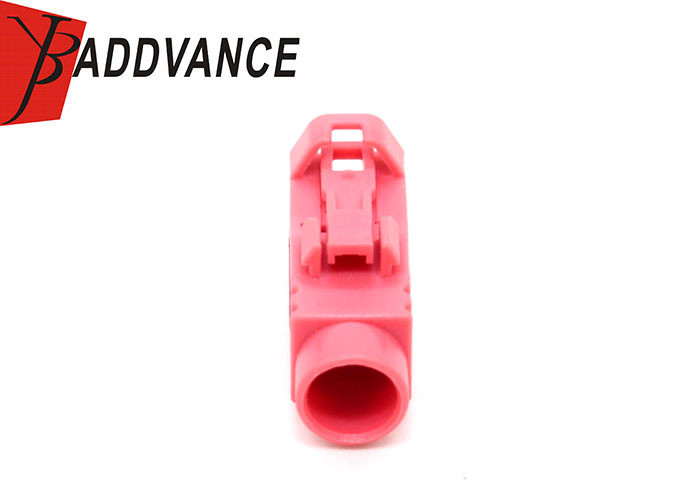

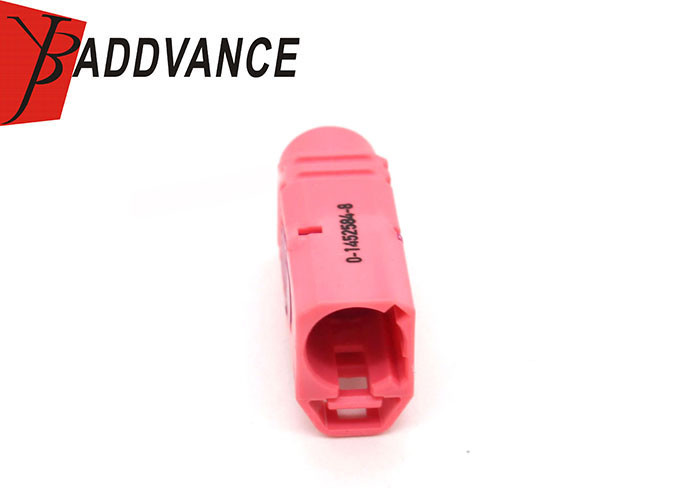

More details about pictures
