DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention

Product Categories
Xi'An YingBao Auto Parts Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention

Brand Name : YBADDVANCE

Model Number : DT06-4S-EP11

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : Negotiation

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Color : Black

Warranty : 1 year

Materials : PBT,Plastic PA66,pbt gf30 and so on...

Sealed/Unsealed : sealed

Standard : OEM Standard

Part Number : DT06-4S-EP11

Leak current : 100μA Max.

Insulation resistance : 100M Min.

Moq : 100 pcs

Gender : Female

Contact Now

DT06-4S-EP11 Deutsch Enhanced Seal Retention 4 Pin Female Connector


Description of Product
DT06-4S-EP11 Deutsch Enhanced Seal Retention 4 Pin Female Connector
Including:
connector housing * 1
grommet * 1
wedge * 1
Connector & Housing Type : Housing for Female Terminals
Mating Pin Diameter : 1.59 mm [ .063 in ]
Connector System : Wire-to-Wire
Number of Positions : 4
Centerline (Pitch) : 4.45 mm [ .175 in ]

Specification

Keywords

4 Pin Connector

Part NumberDT06-4S-EP11
Sealed/Unsealed

sealed

Male/Femalefemale
MaterialPBT PA66
Way4 way
MOQ

100 units/lot

Leak current100μA Max.
Insulation resistance100MΩ Min.
seal

Initial
98kPa Min.
after durability tests
98kPa Min.

Mating Pin Diameter 1.59 mm [ .063 in ]
Housing ColorBlack
Operating Temperature range-40℃~120℃
SampleWe can provide you samples before place an order
IncludingHousing Socket,terminals,seals
Main productsElectrical Connectors,wire harnesses and fuel injector repair kits..
Delivery TimeAbout 3-7 days
Replacement BrandTE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.
Design AbilityPlease send us drawing or samples to design OEM&ODM
MarketCANADA,ITALY,Germany,Finland,UK,USA, and so on...
Gross weight1.5kgs/100 pieces
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL





DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention

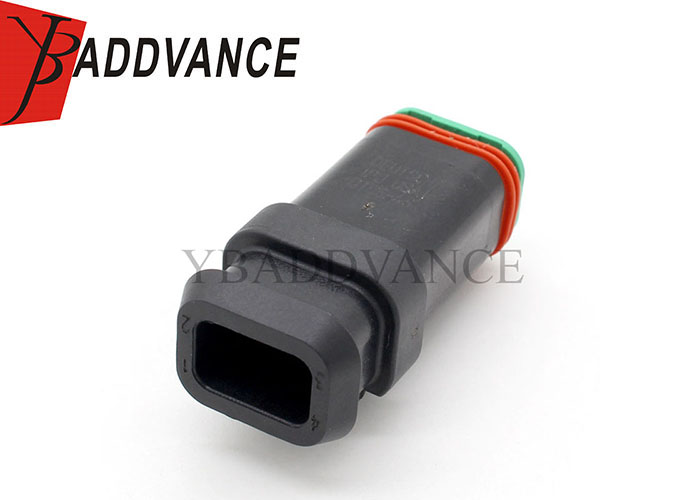

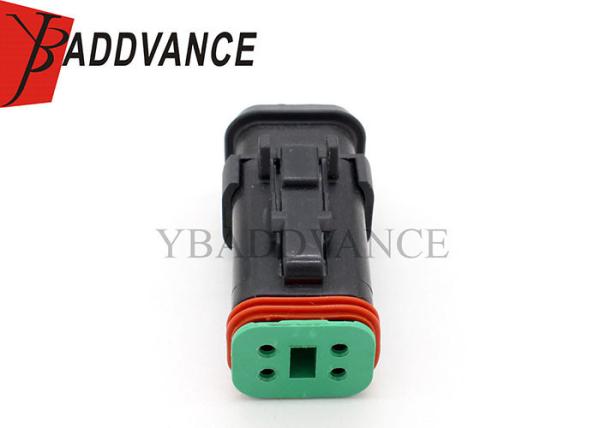

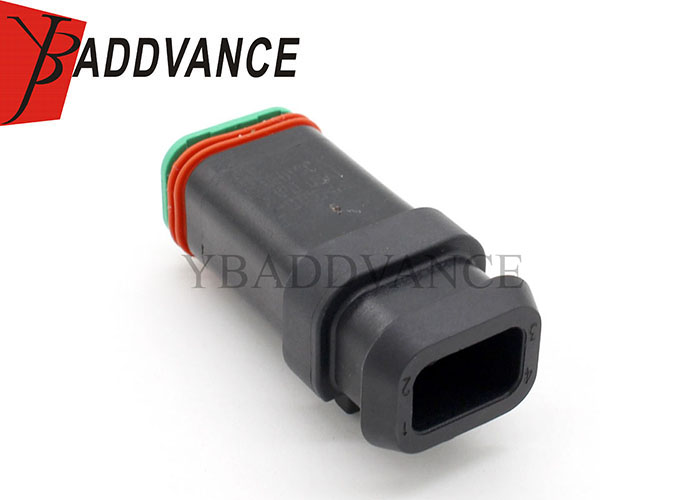

More details about pictures

DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention
DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention



Product Tags:

DT06-4S-EP11 Deutsch Automotive Connectors



1.59 mm Deutsch Automotive Connectors



DT06-4S-EP11 4 pin deutsch plug


Quality DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention wholesale

DT06-4S-EP11 Deutsch Automotive Connectors 4 Pin Enhanced Seal Retention Images
