Metri-Pack 150.2 Series 4 Pin Female Waterproof Connector For Buick Chevrolrt 12162859
Specification
| Product Name | 4 Pin Female Waterproof Connector |
| Way | 4 Way |
| P/N | 12162859 |
| Gender | Female |
| Sealed/Unsealed | Sealed |
| Color | Pink |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Quality Control | All goods will be 100% inspected before shipment |
| Wire Size | 16-22AWG |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| MOQ | 100 units/lot |
| Including | Connector housing,terminals,rubber seals |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Delivery Time | About 3-7 days |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
Description
7283-8855-30 8 Pin Waterproof Connector Female With Terminals and Seals For Japanese Car
This part come with the following types:

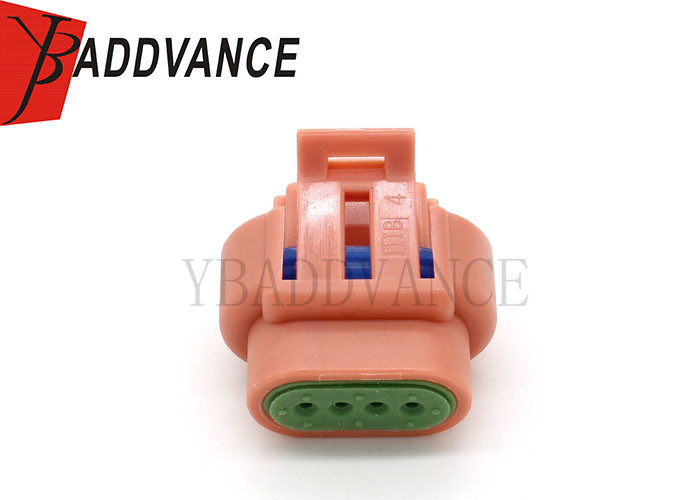

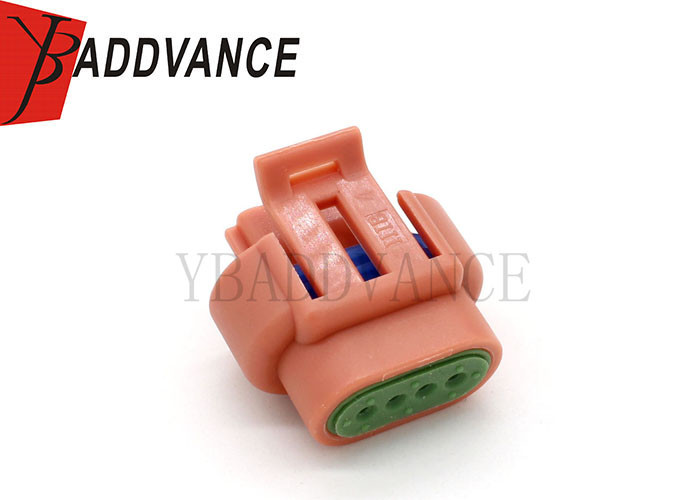

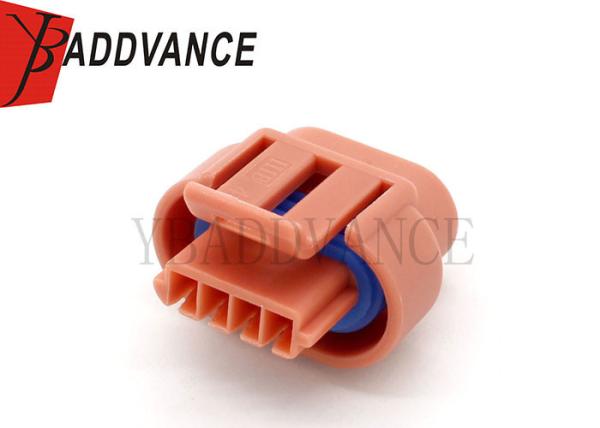

Connector: Pink female connector
Included: terminals and seals
Product name:Auto Connector
Original number:12162859
Material:Housing:PBT+G,PA66+GF;Terminal:Copper Alloy,Brass,Phosphor Bronze.
Male or Female:Female
Number of Positions:4 Pin
Sealed or Unsealed:Sealed
Operating Temperature range:-40℃~120℃
Type: adapter
Series:Metri-Pack 150.2 Series
Application:For Buick Chevrolrt
Hot products
| Sumitomo Connector | Gender | Pin number | Application |
| HC-050 | Male Connector | 2 Pin | For Turn Signal Light |
| 6185-1177 6918-1780 | Female Connector | 8 Pin | For Headlight Lamp |
| 6098-0148 | Female Connector | 7 Pin | For nissan |
| 6189-0715 | DL Female Connector | 16 Pin | |
| So on.. | ... | ... | |
| Molex Connector | Gender | Pin number | Application |
| 34062-0021 | Female Connector | 2 Pin | For Fuel Injector |
| 987881201 0987881201 | Female Connector | 10 Pin | For Peugeot |
43025-1000 | Female Connector | 10 Pin | |
| 31403-3700 | Female Connector | 3 Pin | |
| So on.. | ... | ... | |
