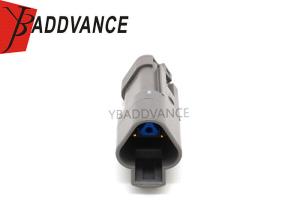

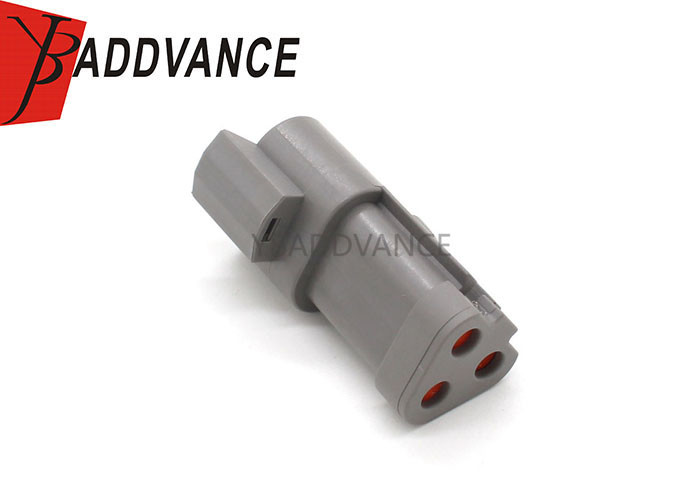

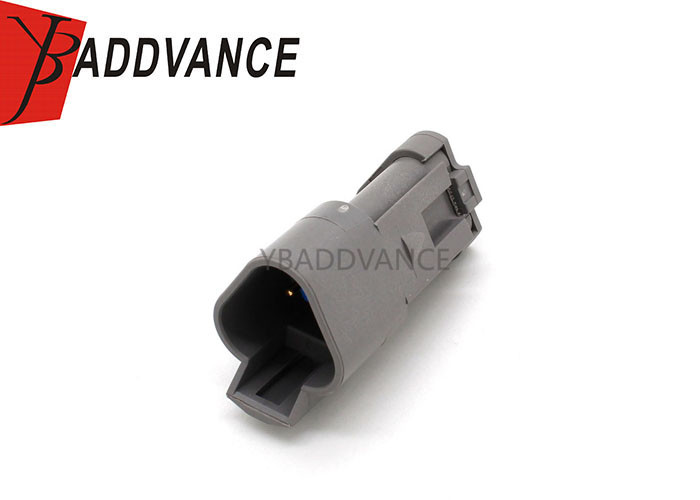

DT04-3P-CE01 Deutsch DT Series 3 Pin Male Connector With Wedge and Short Cap
Description
Deutsch DT Series 3 Pin Male Connector With Wedge and Short Cap
This part come with the following types:
Original number:DT04-3P-CE01
Pin n/p: 3 pin
Gender:Male
Material :PBT
Included:Terminals / Wedge / Short Cap.
Color:Gray
Series:DT Series
Application:For Truck / Bus
Specification
| Product Name | 3 Pin Male Connector |
| Delivery Time | About 3-7 days |
| Way | 3 Way |
| Wire Size | 16-20AWG |
| P/N | DT04-3P-CE01 |
| Gender | Male |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Color | Gray |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
Competitive Advantages
1. Good after-sale service.
2. There are more than 1000 pairs of mold that designed by ourself.
3. We 100% promise to provide you the Highest Quality Components. Some of items are original ,but most are from our own factory.
4. We have a professional team that includes salesman,engineers,workshop workers and our own shipping agency.
5. Our products have been exported to United States,Canada,Italy,Latvia,Netherlands,Germany,Norway, Poland, Finland, Spain, UK, France, Russia,Brazil, Mexico, Australia, New zealand,Japan, Korea, Thailand, Indonesia, Malaysia,Singapore,and many other countries.
Hot products
| Deutsch Connector | Pin number | Gender | Application |
| DTM06-3S-E007 | 3 Pin | Female connector | For Truck / Bus |
| DTM06-2S-EE03 | 2 Pin | Female connector | For Truck / Bus |
| DT04-8P | 8 Pin | Male connector | For Truck / Bus |
| DTM04-12P | 12 Pin | Male connector | For Truck / Bus |
| DT04-2P-CE04 | 2 Pin | Male connector | For Truck / Bus |
| DT06-12SA-CE01 | 12 Pin | Female connector | For Truck / Bus |
| DT04-4P-CE04 | 4 Pin | Male connector | For Truck / Bus |
| So on.. | ... | ... | ... |
