4 Way Female Sumitomo Sealed Connectors Sumitomo 6189-1231 90980-12495

Brand Name : YBADDVANCE

Model Number : 6189-1231 90980-12495

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : negotiation

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Part-No. : 6189-1231 90980-12495

Application : For Video Systems

Way : 4 Way

Gender : Female

Color : Gray

Warranty : One Year

Sealed/Unsealed : Sealed

Gross weight : 2kgs/100pcs

HS CODE : 8536909000

STYLE : Sumitomo Sealed Connectors

Contact Now

Sumitomo 6189-1231 90980-12495 4 Way Female Connector Kit With Terminals/Seals

Description

Sumitomo 6189-1231 90980-12495 4 Way Female Connector Kit With Terminals/Seals

This part come with the following types:

Connector: 4 Way Female Connector Kit

Pin n/p: 4 Pin

Included: Seals and terminal

Type: adapter

Termination Style:Crimp

Color:Gray

Application:For Video Systems

Specification

Product Name 4 Way Female Connector Kit With Terminals/Seals
Number of Positions 4 Way
Original number 6189-1231 90980-12495
Material Housing:PBT+G,PA66+GF;Terminal:Copper Alloy/Brass/Phosphor Bronze.
Sealed/Unsealed Sealed
Color Gray
Male/Female Female
Quality Control All goods will be 100% inspected before shipment
Wire Size 16-22AWG
Operating Temperature range -40℃~120℃
Contact resistance Initial8m Max.after durability tests16m Ma
Leak current Initial50kPa Min.after durability tests30kPa Min.
Insulation resistance 100MΩ Min.
MOQ 100 units/lot
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

Hot products

Sumitomo Connector Gender Pin number Application
6185-1177 6918-1780 Female Connector 8 Pin For Headlight Lamp
HC-050 Male Connector 2 Pin For Turn Signal Light
6189-0715 DL Female Connector 16 Pin
6098-0148 Female Connector 7 Pin For nissan
So on.. ... ...
Molex Connector Gender Pin number Application
34062-0021 Female Connector 2 Pin For Fuel Injector
987881201 0987881201 Female Connector 10 Pin For Peugeot

43025-1000

 Female Connector 10 Pin
31403-3700 Female Connector 3 Pin
So on.. ... ...

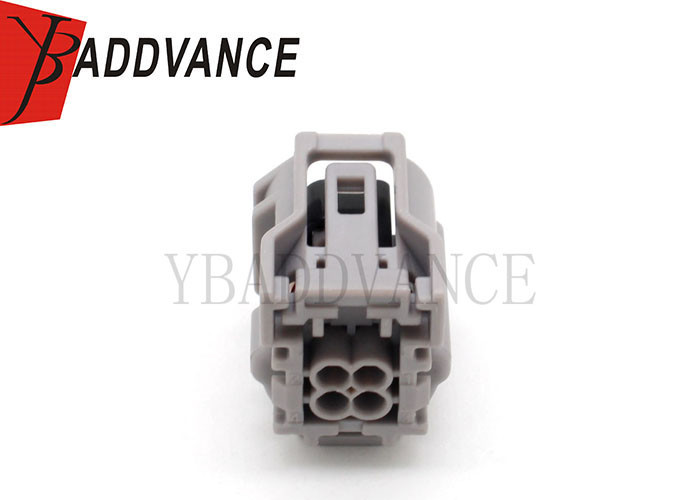

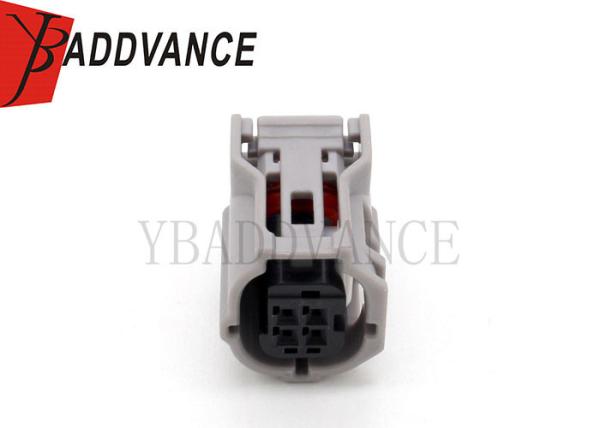

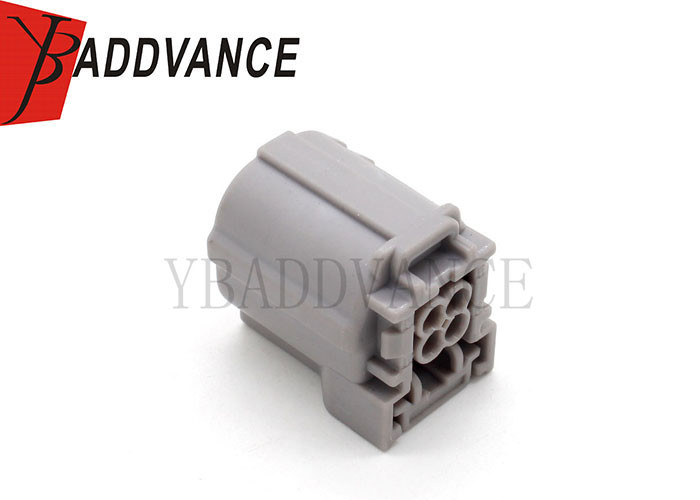

More details about pictures
