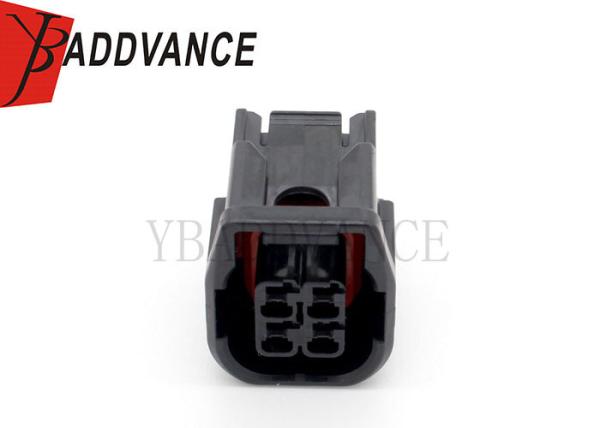

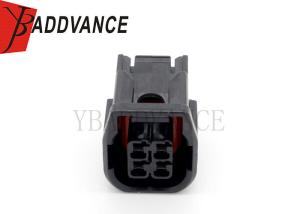

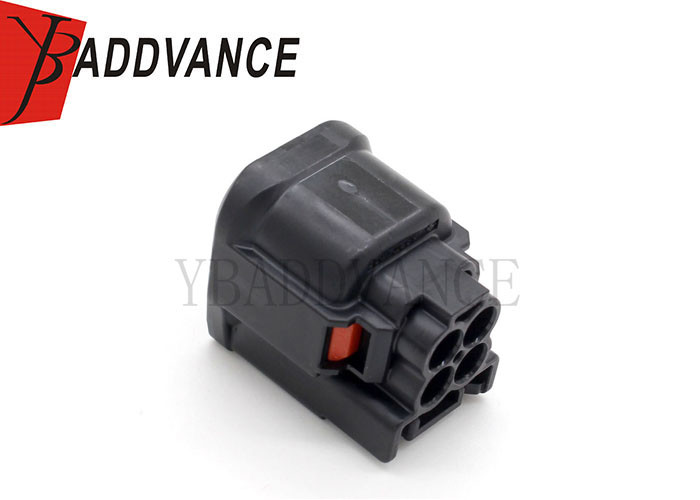

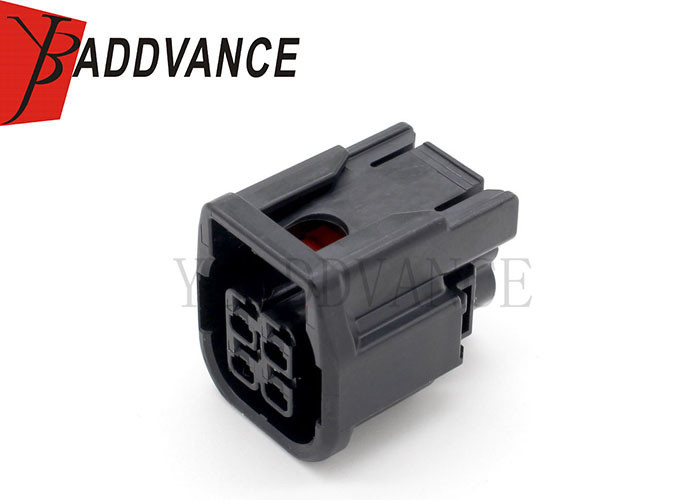

4 Hole Female HX Sealed Series Sumitomo Connector 6189-7409 For Honda
Description
4 Hole Female HX Sealed Series Sumitomo Connector 6189-7409 For Honda
This part come with the following types:
Original number:6189-7409
Series:HX Series
Gender:Female
Material :Housing:PBT+G,PA66+GF;
Terminal:Copper Alloy, Brass, Phosphor Bronze.
Color:Black
Application:For Honda
Specification
| Product Name | Sumitomo Auto Connector |
| Delivery Time | About 3-7 days |
| Way | 4 Way |
| Wire Size | 16-22AWG |
| P/N | 6189-7409 |
| Gender | Female |
| MOQ | 100 units/lot |
| Sealed/Unsealed | Sealed |
| Color | Black |
| Gross weight | 1.5kgs/100 pieces |
| Shipping express | DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL |
| Design Ability | Please send us drawing or samples to design OEM&ODM |
| Quality Control | All goods will be 100% inspected before shipment |
| Operating Temperature range | -40~120 |
| Contact resistance | Initial8m Max.after durability tests16m Ma |
| Leak current | Initial50kPa Min.after durability tests30kPa Min. |
| Main products | Electrical Connectors,wire harnesses and fuel injector repair kits.. |
| Insulation resistance | 100MΩ Min. |
| Including | Connector housing,terminals,rubber seals |
| Replacement Brand | TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on.. |
| Material | PBT,Plastic PA66,pbt gf30 and so on... |
| Market | Germany,Finland,UK,USA,CANADA,ITALY and so on... |
Competitive Advantages
1. Good after-sale service.
2. There are more than 1000 pairs of mold that designed by ourself.
3. We 100% promise to provide you the Highest Quality Components. Some of items are original ,but most are from our own factory.
4. We have a professional team that includes salesman,engineers,workshop workers and our own shipping agency.
5. Our products have been exported to United States,Canada,Italy,Latvia,Netherlands,Germany,Norway, Poland, Finland, Spain, UK, France, Russia,Brazil, Mexico, Australia, New zealand,Japan, Korea, Thailand, Indonesia, Malaysia,Singapore,and many other countries.
Hot products
| Sumitomo Connector | Pin number | Gender | Application |
| 6189-0647 | 4 Pin | Female | For T-PRS-Switch |
| 6189-7396 / 90980-12A88 | 1 Pin | Female | For Lexus Toyota |
| 6195-0038 | 8 Pin | DL 090 Female | |
| 6187-2171 | 2 Pin | Female | For Automotive |
| 6189-0134 6918-0332 | 8 Pin | HW 090 Female | |
| So on.. | ... | ... | ... |
| Deutsch Connector | Pin number | Gender | |
| DTM06-3S-E007 | 3 Pin | Female connector | |
| DTM06-2S-EE03 | 2 Pin | Female connector | |
| DT04-8P | 8 Pin | Male connector | |
| DTM04-12P | 12 Pin | Male connector | |
| So on.. | ... | ... | ... |
