Name: 2 Rows Female Sumitomo Sealed Connectors For Throttle Pedal Position Sensor
Brand: YBADDVANCE
Price: 0.5 USD

Brand Name : YBADDVANCE

Model Number : 6195-0021

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : USD 0.5-0.7 Per set with crimp terminals

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Original P/N : 6195-0021

Gender : Female

Number of Pin : 6 Pin

Sealed/Unsealed : Sealed

Number of Rows : 2 Rows

Material : PBT or Low water absorption Nylon

Number of Contact : 6

Keywords : Sumitomo 6 Pin Connector

Leak current : 100μA Max.

Insulation resistance : 100MΩ Min.

Contact Now

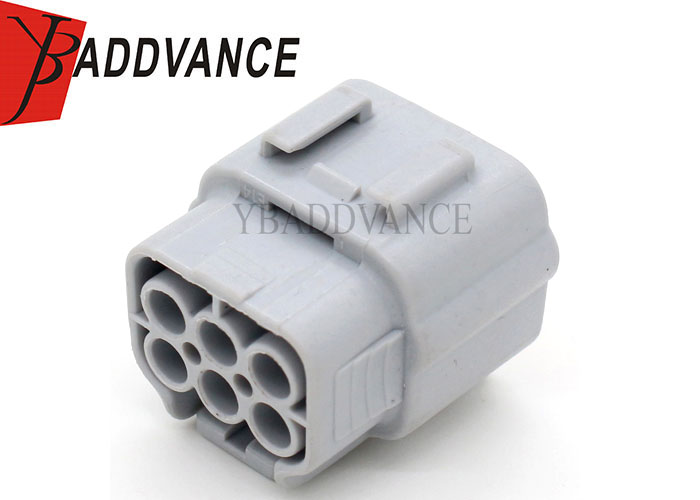

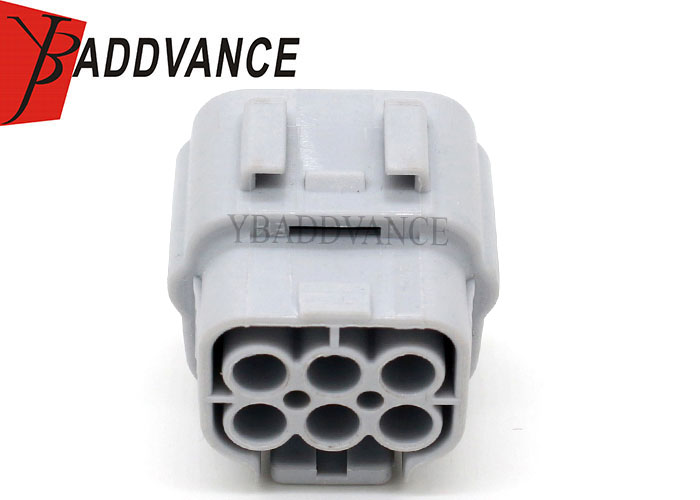

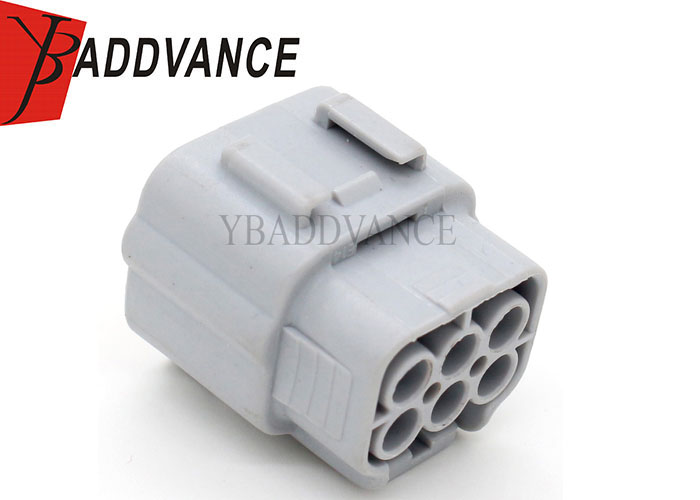

DL Sealed Series Sumitomo 6 Pin Connector 6195-0021 For Throttle Pedal Position Sensor

Product Description

6 way Accelerator Throttle Pedal Sensor connector

Series: DL 090 Sealed Series
OEM P/N: 6195-0021
Mating Part: 6195-0024(DL sealed series)

Cross Reference List:
For Ford 3U2Z-14S411-BGAB, WPT-1115 (Tin plated terminals, greased) pigtail connector

Specification

Keywords	Sumitomo 6 Pin Connector
Part Number	6195-0021
Sealed/Unsealed	Sealed Connector
Gender	Female
Material	PBT
Way	6 Way
Contact resistance	Initial 3mΩ Max. after durability tests 6mΩ Max
Leak current	100μA Max.
Insulation resistance	100MΩ Min.
seal	Initial 98kPa Min. after durability tests 98kPa Min.
Quality Control	All goods will be 100% inspected before shipment
Housing Color	Dark Gray
Operating Temperature range	-40℃~120℃
Sample	We can provide you samples before place an order
Including	Connector housing,terminals,rubber seals
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time	About 3-7 days
Replacement Brand	TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	2kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
