6180-1181 1 Pole Sumitomo Electric Connectors / Sealed Connector With Terminals

Name: 61801181 1 Pole Sumitomo Electric Connectors Sealed Connector With Terminals
Brand: YBADDVANCE
Price: 1 USD

Quality 6180-1181 1 Pole Sumitomo Electric Connectors / Sealed Connector With Terminals wholesale

Brand Name : YBADDVANCE

Model Number : 6180-1181

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 6180-1181

Way : 1 way

Color : White

Gender : Female

WARRANTY : 1 year

Type : Sealed Connector

Martial : PBT/PA66

HS code : 8536909000

Feature : Waterproof

PLACE OF ORIGIN : Shaanxi,China

Contact Now

6180-1181 1 Pole Automotive MT Sealed Series Connector With Terminals

Description

1 Pole Automotive MT Sealed Series Connector With Terminals
Mating parts: 6187-1171/6187-1561

Height : 10.3 mm

Length : 23 mm

Width : 9.2 mm

Pitch : 2.3mm(090)
If you have any enquiry about quotation or ,please feel free to contact us

Specification

Item name	6180-1181 1 Pole Automotive MT Sealed Series Connector With Terminals
P/N	6180-1181
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	1 pin Sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	1 way
Color	White
Warranty	1 year
Application	Automoive Motorcycles

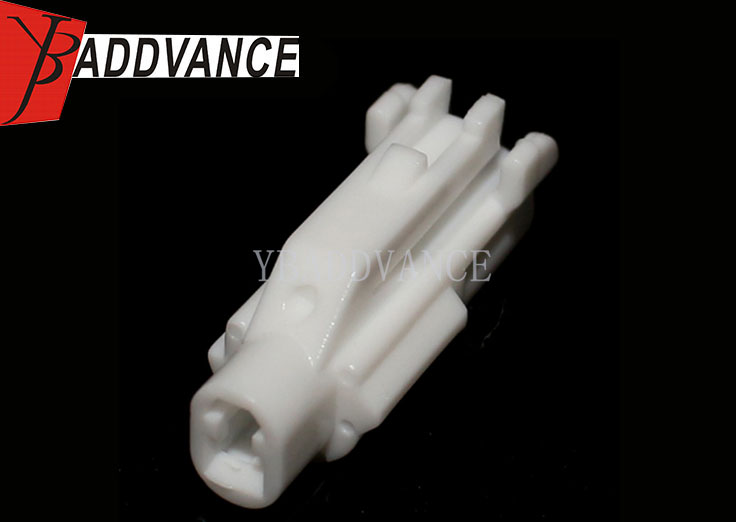

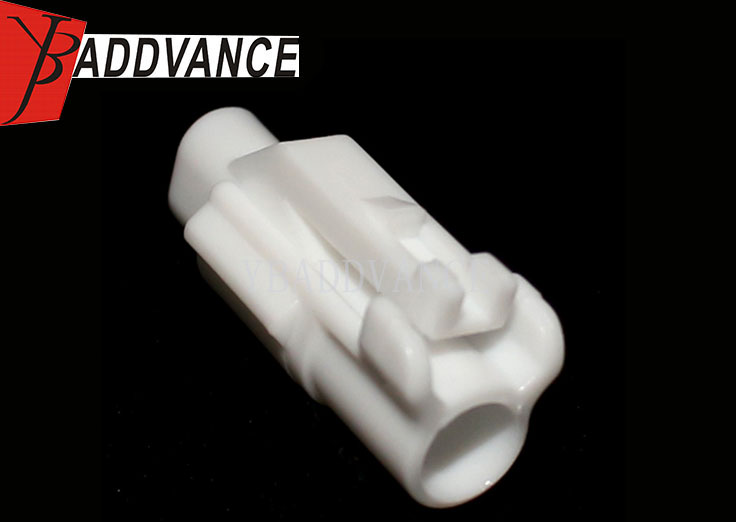

Product Picture Details

6180-1181 1 Pole Sumitomo Electric Connectors / Sealed Connector With Terminals
