Female Crank Sensor Sumitomo Automotive Connectors 2 Pin 6180-2181

Name: Female Crank Sensor Sumitomo Automotive Connectors 2 Pin 61802181
Brand: YBADDVANCE
Price: 1 USD

Quality Female Crank Sensor Sumitomo Automotive Connectors 2 Pin 6180-2181 wholesale

Brand Name : YBADDVANCE

Model Number : 6180-2181

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 6180-2181

Way : 2 way

Color : White

Gender : Male

WARRANTY : 1 year

Type : Sealed Connector

Martial : PBT/PA66

HS code : 8536909000

Feature : Waterproof

PLACE OF ORIGIN : Shaanxi,China

Contact Now

6180-2181 2 Pin Female Crank Sensor Sumitomo MT 090 Connector

Description

2 Pin Female Crank Sensor Sumitomo MT 090 Connector
Mating parts: 6187-2171

Height : 9.5mm

Length : 23 mm

Width : 14 mm

Application : 07> GSXR Crank sensor (sensor side)

Terminals Fit wire size .5 - 1.3 mm (16-22 AWG)
High quality with reasonable price , please contact us if you have any concerns

Specification

Item name	6180-2181 2 Pin Female Crank Sensor Sumitomo MT 090 Connector
P/N	6180-2181
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	2 pin Sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	2 way
Color	White
Warranty	1 year
Application	Automoive Motorcycles

Product Picture Details

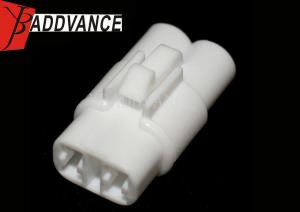

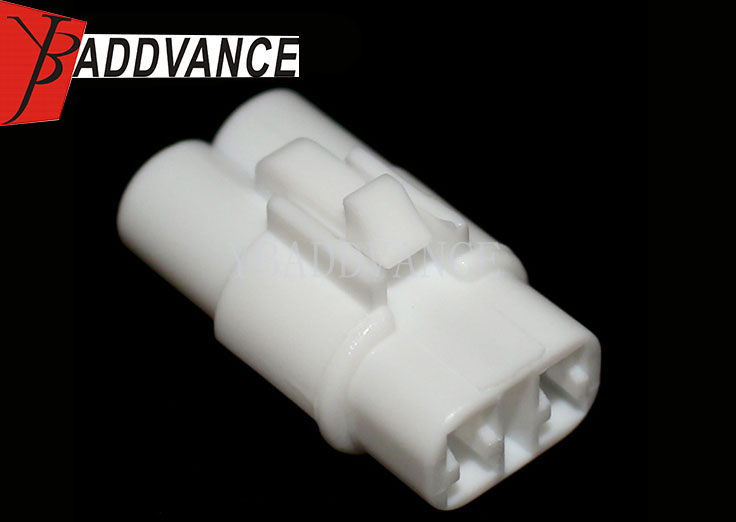

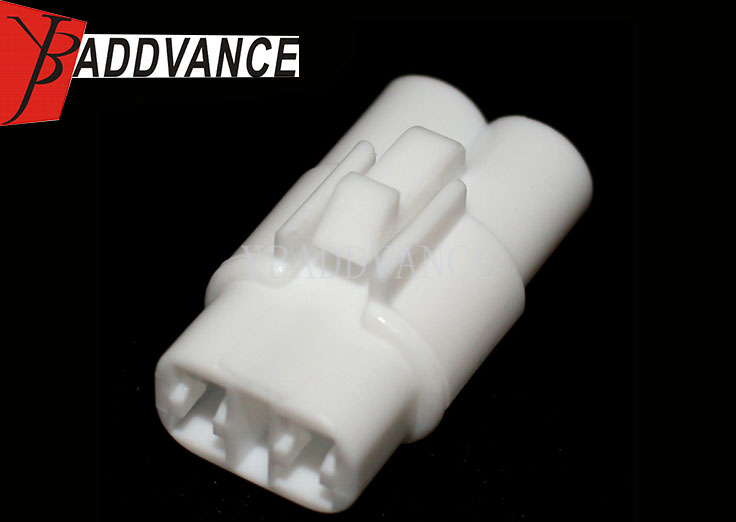

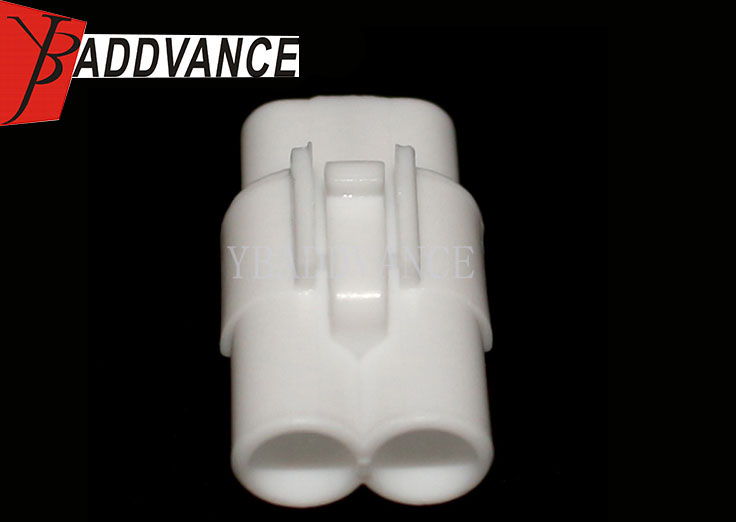

Female Crank Sensor Sumitomo Automotive Connectors 2 Pin 6180-2181
