6 Way Male JWPF Series Automotive Electrical Connectors With Terminals

Name: 6 Way Male JWPF Series Automotive Electrical Connectors With Terminals
Brand: YBADDVANCE
Price: 1 USD

Quality 6 Way Male JWPF Series Automotive Electrical Connectors With Terminals wholesale

Brand Name : YBADDVANCE

Model Number : JST-06T-JWPF-VSLE

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : JST-06T-JWPF-VSLE

Way : 6 way

Color : White

Gender : Male

WARRANTY : 1 year

Type : Sealed Connector

Martial : PBT/PA66

HS code : 8536909000

Feature : Waterproof

PLACE OF ORIGIN : Shaanxi,China

Contact Now

JST-06T-JWPF-VSLE 6 Way Male JWPF Series Connector With Terminals

Description

6 Way Male JWPF Series Connector With Terminals

Pitch Spacing : 2mm

Height : 9.8 mm

Length : 25.8 mm

Width : 12.8 mm

IP rating: IPX7

Mating parts: JST-06R-JWPF-VSLE
Applications : Appliances: such as refrigeration and washing machines

Automation: such as light cluster units and door mirror control units

Rail: such as internal and external lighting systems and low current power systems

Industrial: factory automation

Lighting: general low current harness looms Note Tab contact to be mounted in tab housing and receptacle contact to be mounted in receptacle housing

Specification

Item name	JST-06T-JWPF-VSLE 6 Way Male JWPF Series Connector With Terminals
P/N	JST-06T-JWPF-VSLE
Wire Size	22-26AWG
Operating Temperature range	-55℃~85℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	6 pin Sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	6 way
Color	White
Warranty	1 year
Application	Automoive Motorcycles

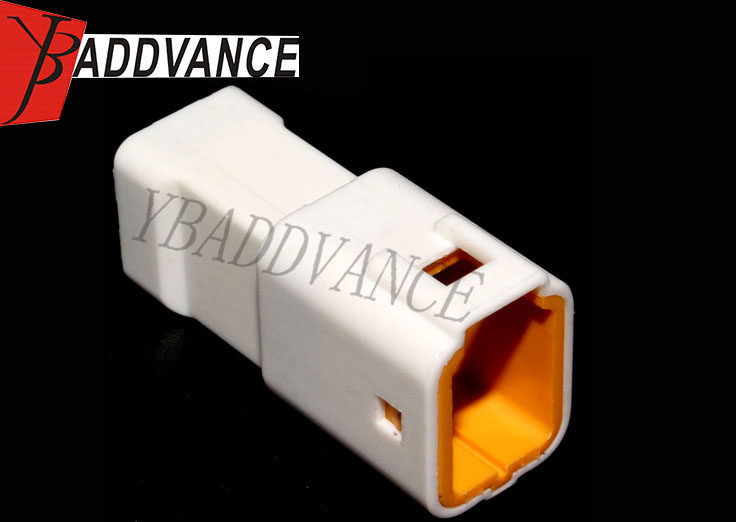

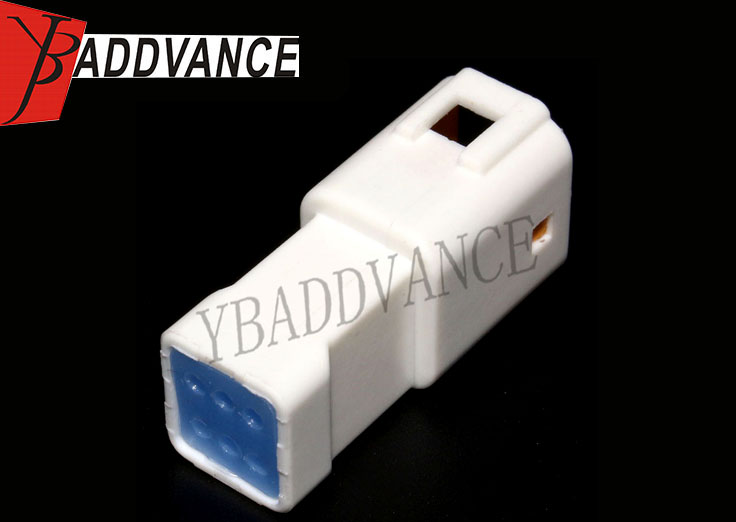

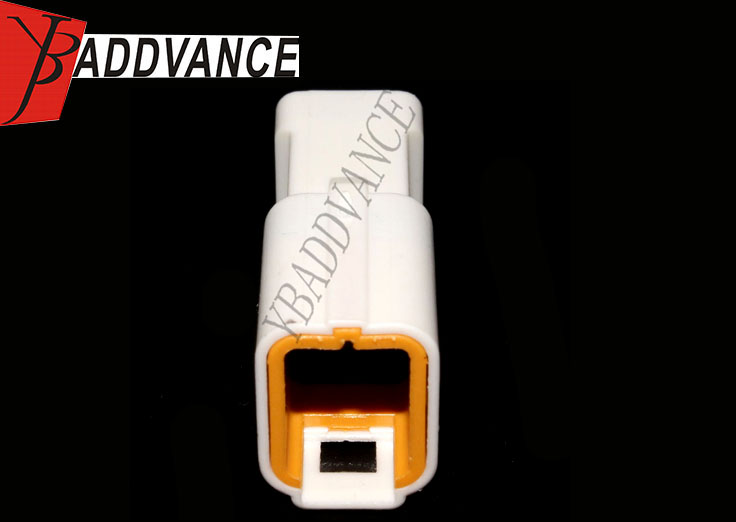

Product Picture Details

6 Way Male JWPF Series Automotive Electrical Connectors With Terminals
