Sealed Automotive Electrical Connectors 4 Way JST JWPF Speed Sensor

Name: Sealed Automotive Electrical Connectors 4 Way JST JWPF Speed Sensor
Brand: YBADDVANCE
Price: 1 USD

Quality Sealed Automotive Electrical Connectors 4 Way JST JWPF Speed Sensor wholesale

Brand Name : YBADDVANCE

Model Number : JST-04R-JWPF-VSLE

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : JST-04R-JWPF-VSLE

Way : 4 way

Color : White

Gender : Male

WARRANTY : 1 year

Type : Sealed Connector

Martial : PBT/PA66

HS code : 8536909000

Feature : Waterproof

PLACE OF ORIGIN : Shaanxi,China

Contact Now

JST-04R-JWPF-VSLE 4 Way JST JWPF Speed Sensor Sealed Connector

Description

4 Way JST JWPF Speed Sensor Sealed Connector

Pitch Spacing : 2mm

Height : 5.5mm

Length : 16.5 mm

Width : 10.7mm

Mating parts: JST-04T-JWPF-VSLE

Number of Positions : 4Ways
Type of connector: wire-wire/PCB

It has a solid rubber seal at the wire side that provides IP67 waterproof protection.

Specification

Item name	JST-04R-JWPF-VSLE 4 Way JST JWPF Speed Sensor Sealed Connector
P/N	JST-04R-JWPF-VSLE
Wire Size	22-26AWG
Operating Temperature range	-55℃~85℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	4 pin Sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	4 way
Color	White
Warranty	1 year
Application	Automoive Motorcycles

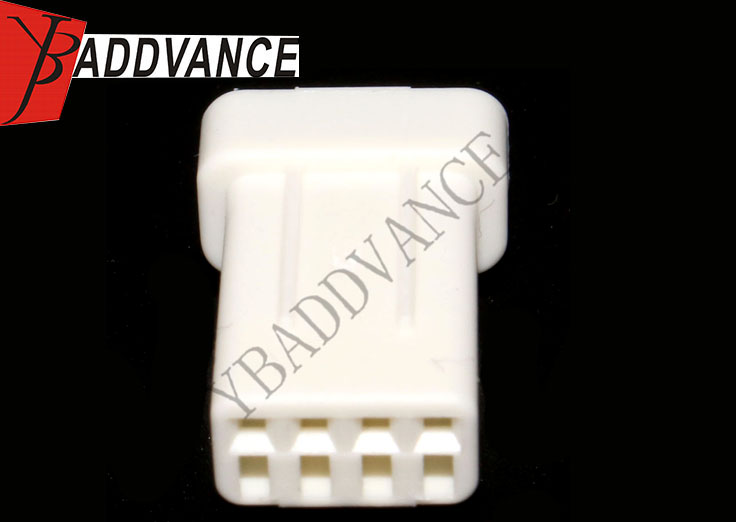

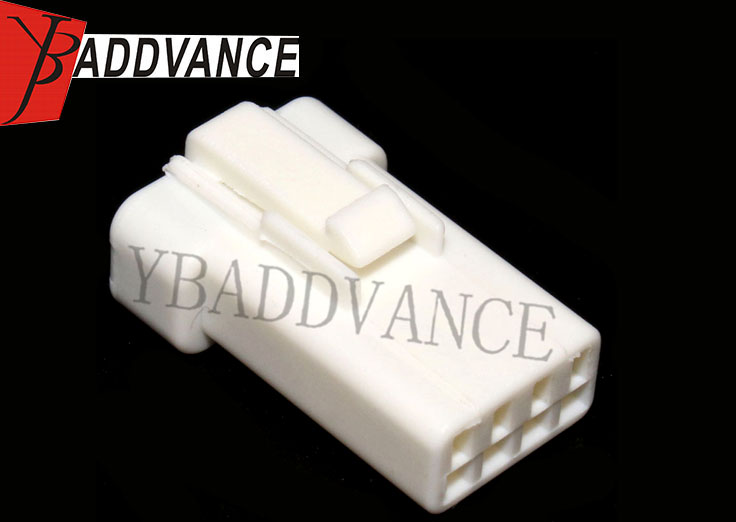

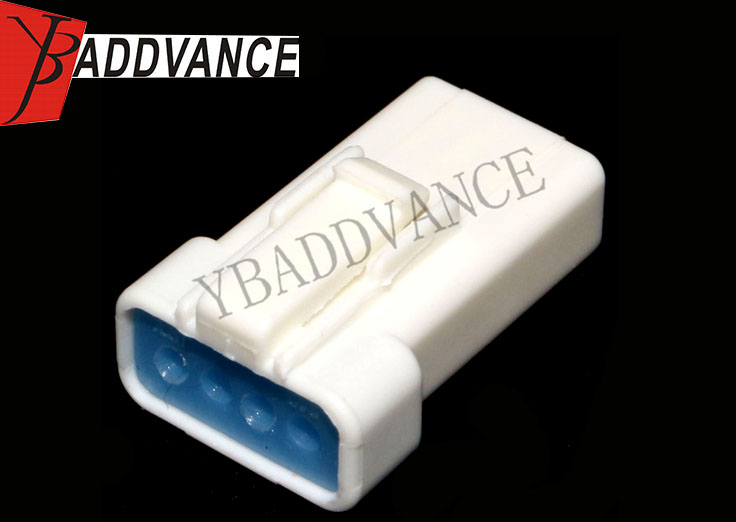

Product Picture Details

Sealed Automotive Electrical Connectors 4 Way JST JWPF Speed Sensor
