2 Pin Male JST JWPF Series Tail Light Connector JST-02T-JWPF-VSLE

Name: 2 Pin Male JST JWPF Series Tail Light Connector JST02TJWPFVSLE
Brand: YBADDVANCE
Price: 1 USD

Quality 2 Pin Male JST JWPF Series Tail Light Connector JST-02T-JWPF-VSLE wholesale

Brand Name : YBADDVANCE

Model Number : JST-02T-JWPF-VSLE

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : JST-02T-JWPF-VSLE

Way : 2 way

Color : White

Gender : Male

WARRANTY : 1 year

Type : Sealed Connector

Martial : PBT/PA66

HS code : 8536909000

Feature : Waterproof

PLACE OF ORIGIN : Shaanxi,China

Contact Now

JST-02T-JWPF-VSLE 2 Pin Male JST JWPF Series Taillight Connectors

Description

2 Pin Male JST JWPF Series Taillight Connectors

Height : 8.1mm

Length : 25.8 mm

Width : 7 mm

Mating parts: JST-02R-JWPF-VSLE

Series:JWPF

Operating temperature range :-25°C to 85°C

The JWPF Series from JST are a range of connector housings with 2.00mm pitch.

Specification

Item name	JST-02T-JWPF-VSLE 2 Pin Male JST JWPF Series Taillight Connectors
P/N	JST-02T-JWPF-VSLE
Wire Size	18-22AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	2 pin Sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	2 way
Color	White
Warranty	1 year
Application	Automoive Motorcycles

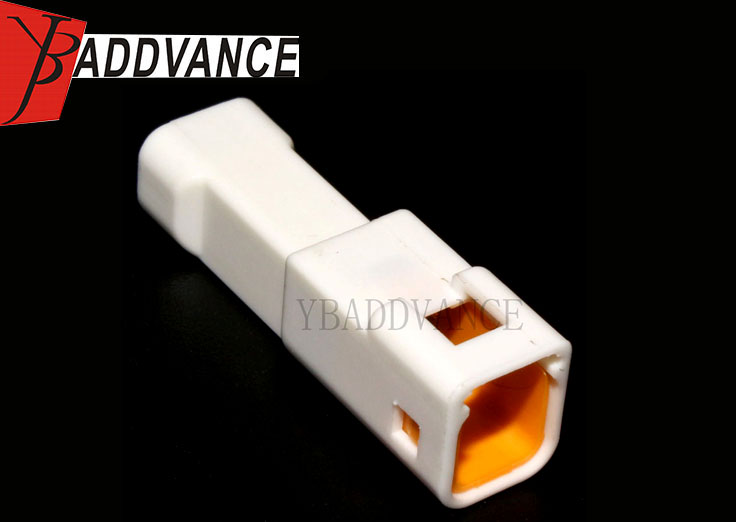

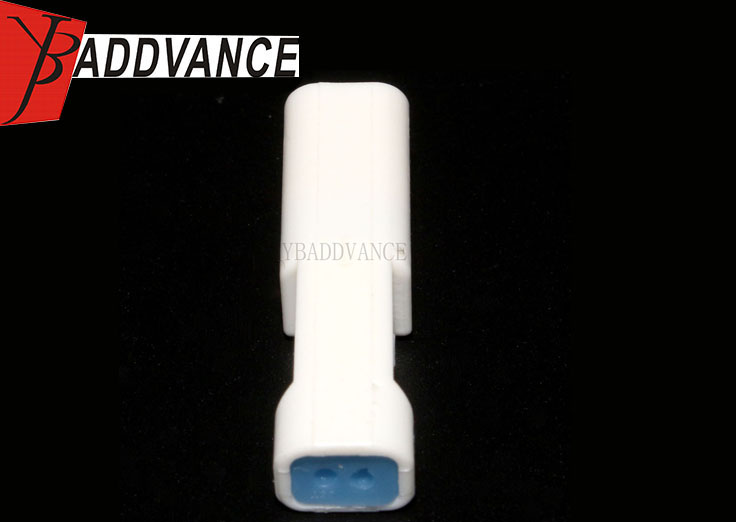

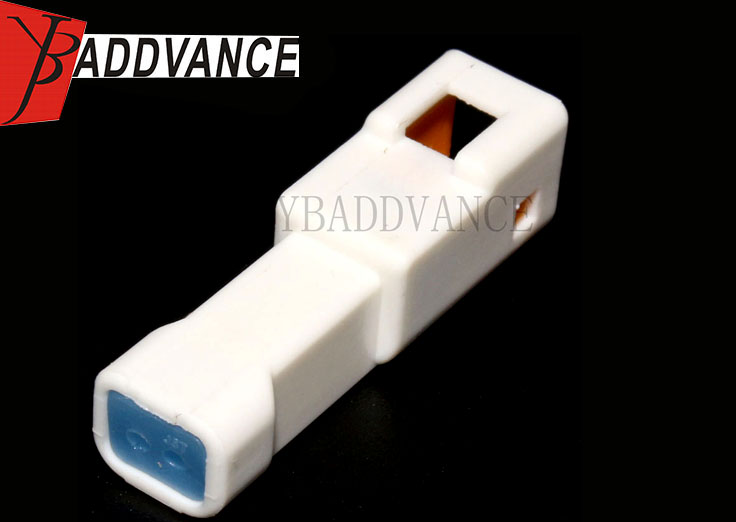

Product Picture Details

2 Pin Male JST JWPF Series Tail Light Connector JST-02T-JWPF-VSLE
