4 Pin Pigtail TPS Throttle Repair Crank Sensor Connector 90980-11150 For Toyota

Name: 4 Pin Pigtail TPS Throttle Repair Crank Sensor Connector 9098011150 For Toyota
Brand: YBADDVANCE
Price: 1 USD

Quality 4 Pin Pigtail TPS Throttle Repair Crank Sensor Connector 90980-11150 For Toyota wholesale

Brand Name : YBADDVANCE

Model Number : 90980-11150

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 90980-11150

Way : 4 way

Type : Wire Harness

Gender : Female

Color : Black

HS code : 8536909000

Feature : With Wire 15CM

WARRANTY : 1 year

Martial : PBT/PA66

PLACE OF ORIGIN : Shaanxi,China

Contact Now

90980-11150 4 Pin Pigtail TPS Throttle Repair Crank Sensor Connector For Toyota

Description

4 Pin Pigtail TPS Throttle Repair Crank Sensor Connector For Toyota

The connector come with 15 cm wire length

Connector size :

Width :36 mm

Length:24 mm

Height:25.5mm

Applications include
Toyota Lexus APP - Accelerator Pedal Position Sensor connector
Toyota Lexus Ignition coil connector

The Ignition Coil connector For 90919-02221 90919-02217 UF-180 UF-246 UF-229 LEXUS GS400 LS400 SC400 TOYOTA Townace, Liteace Corolla Prizm Q2CRC407

Specification

Item name	4 Pin Pigtail TPS Throttle Repair Crank Sensor Connector For Toyota
P/N	90980-11150
Wire Size	10-14AWG
Wire Length	15 CM
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	4 pin Sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	4 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

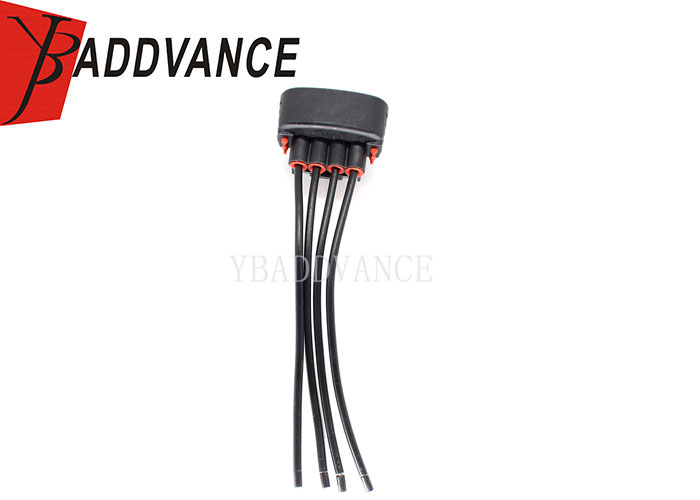

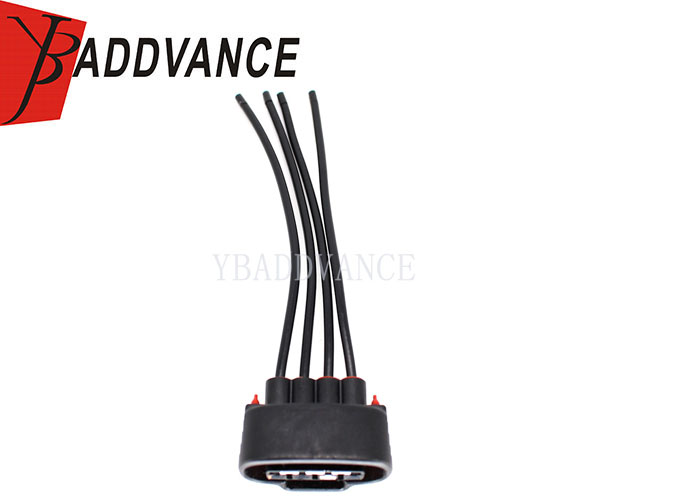

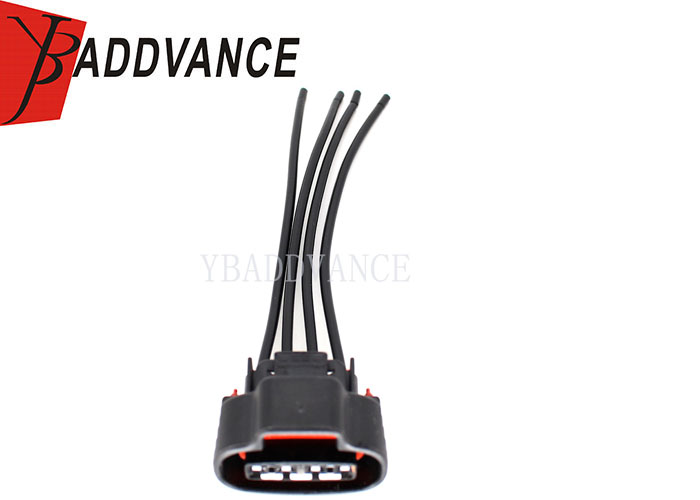

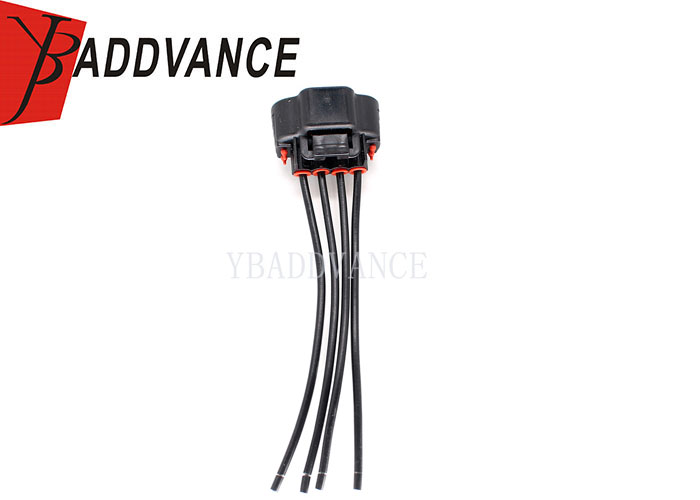

Product Picture Details

4 Pin Pigtail TPS Throttle Repair Crank Sensor Connector 90980-11150 For Toyota
