Sumitomo 3 Pin HW B-Series HeadLight Leveling Device Plug For Honda

Name: Sumitomo 3 Pin HW BSeries HeadLight Leveling Device Plug For Honda
Brand: YBADDVANCE
Price: 1 USD

Quality Sumitomo 3 Pin HW B-Series HeadLight Leveling Device Plug For Honda wholesale

Brand Name : YBADDVANCE

Model Number : 6189-0130

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 6189-0130

Way : 3 way

Type : Wire Harness

Gender : Female

Color : Black

HS code : 8536909000

Feature : With Wire 15CM

WARRANTY : 1 year

Martial : PBT/PA66

PLACE OF ORIGIN : Shaanxi,China

Contact Now

Sumitomo 3 Pin HW B-Series HeadLight Leveling Device Plug For Honda

Description

3 Way Sumitomo HW B-Series VSS Connector For Head Light Leveling Device

It is for Head Light Leveling Device

Connector size:

Height : 21.4 mm

Width : 28.11 mm

Length : 27.8mm
Series: HW Sealed Series
OEM P/N: 6189-0130
Mating Part: HW-3P-1
Material
Housing:PBT+G,PA66+GF;Terminal:Copper Alloy,Brass,Phosphor Bronze.

Please let me know if you needn't the wire harness

Specification

Item name	3 Way Sumitomo HW B-Series VSS Connector For Head Light Leveling Device
P/N	6189-0130
Wire Size	18-22AWG
Wire Length	15CM
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	3 pin Sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	3 way
Color	Black
Warranty	1 year
Application	Automoive Motorcycles

Product Picture Details

Sumitomo 3 Pin HW B-Series HeadLight Leveling Device Plug For Honda

Product Tags:

automotive wiring harness

car wiring harness

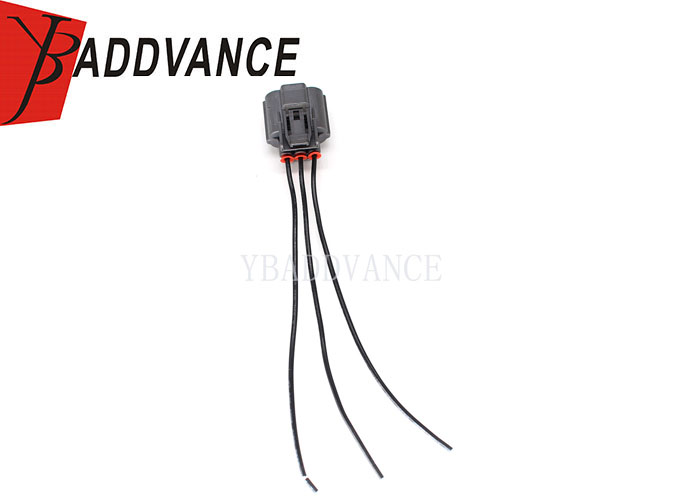

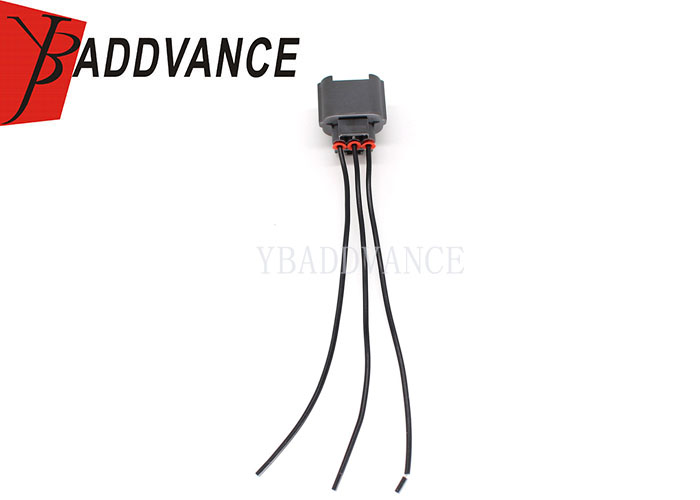

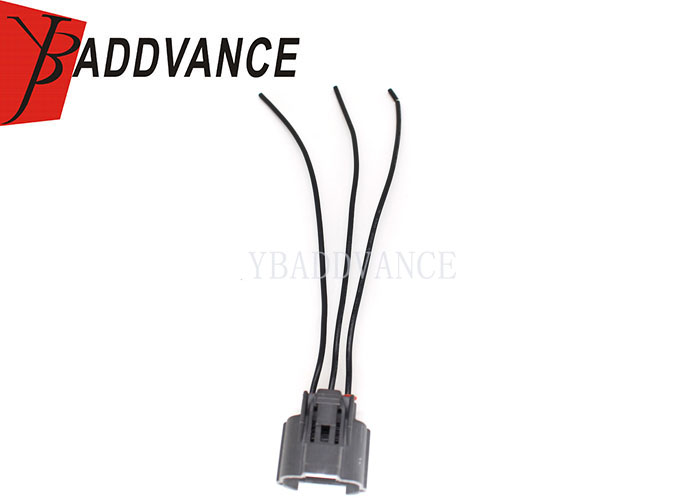

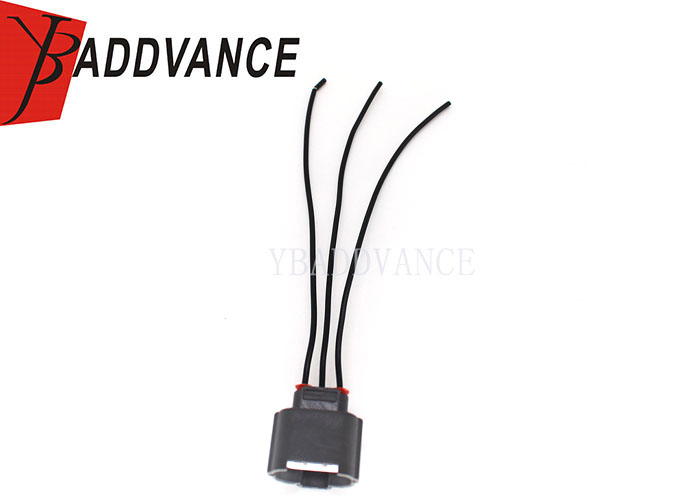

Sumitomo 3 Pin HW B-Series HeadLight Leveling Device Plug For Honda Images
