Sumitomo HX 060 Series Male Sealed Sensor Connector / 12 Pin Electrical Connector

Brand Name : YBADDVANCE

Model Number : 6181-6784

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : USD 0.5-0.7 Per set with crimp terminals

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Sumitomo P/N : 6181-6784

Series : Sumitomo HX 060 Series

Material : PBT

Sealed/Unsealed : Sealed

Color : Black

Male / Female : Male

Number of Positions : 12 Pin

Number of Rows : 2 Rows

Leak current : 100μA Max.

Insulation resistance : 100MΩ Min.

Contact Now

Sumitomo HX 060 Series Male 12 Pin Electrical Connector 6181-6784

Product Description

12 Way Automotive Connector Male Type SUMITOMO 6181-6784

and this Connector come with the following parts:

1 X male housing

12 X male terminals

12 X wire seals

Specification

Keywords 12 Pin Electrical Connector
Part Number 6181-6784
Sealed/Unsealed Sealed Connector
Male/Female Male
Material PBT
Way 12 Way
Contact resistance

Initial
3mΩ Max.
after durability tests
6mΩ Max
Leak current 100μA Max.
Insulation resistance 100MΩ Min.
seal

Initial
98kPa Min.
after durability tests
98kPa Min.
Quality Control All goods will be 100% inspected before shipment
Housing Color Black
Operating Temperature range -40℃~120℃
Sample We can provide you samples before place an order
Including Connector housing,terminals,rubber seals
Main products Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time About 3-7 days
Replacement Brand TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability Please send us drawing or samples to design OEM&ODM
Market Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight 2kgs/100 pieces
Shipping express DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

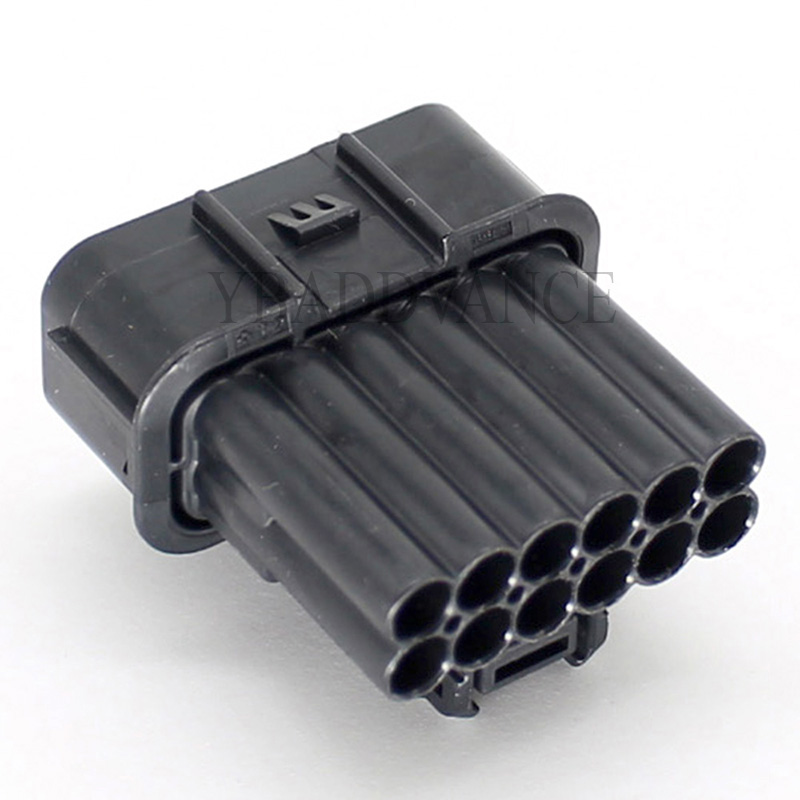

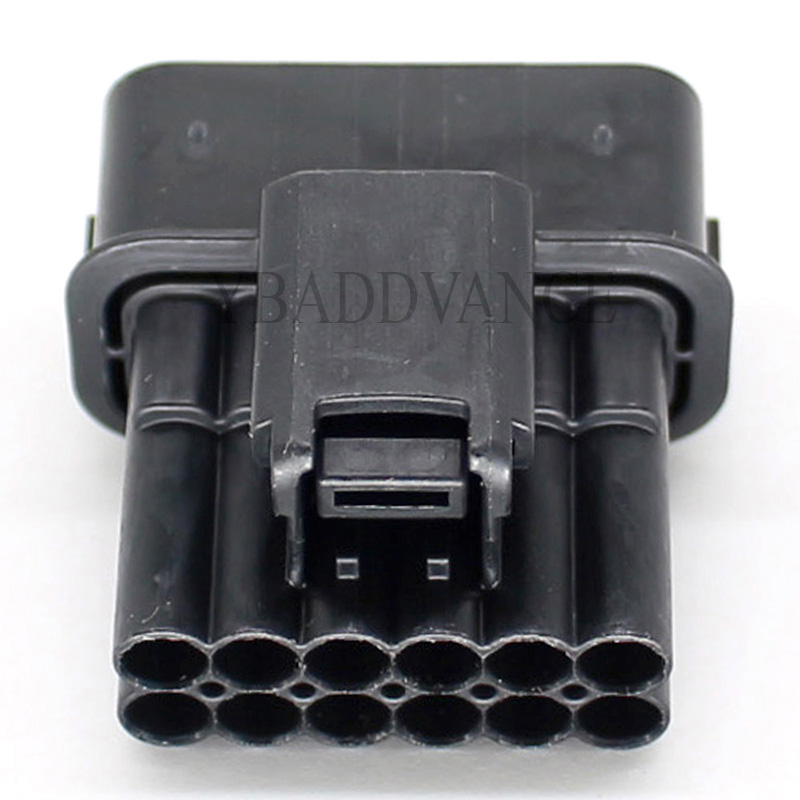

More details about pictures

Sumitomo HX 060 Series Male Sealed Sensor Connector / 12 Pin Electrical Connector

Sumitomo HX 060 Series Male Sealed Sensor Connector / 12 Pin Electrical Connector
