8 Way Sumitomo Sealed Connectors Female HW Series 6189-0134 6918-0332

Name: 8 Way Sumitomo Sealed Connectors Female HW Series 61890134 69180332
Brand: YBADDVANCE
Price: 0.5 USD

Quality 8 Way Sumitomo Sealed Connectors Female HW Series 6189-0134 6918-0332 wholesale

Brand Name : YBADDVANCE

Model Number : 6189-0134 6918-0332

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : USD 0.5-0.7 Per set with crimp terminals

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Part Number : 6189-0134 6918-0332

Series : Sumitomo HW Series

Material : PBT

Sealed/Unsealed : Sealed

Color : Gray

Gender : Female

Way : 8 way

Number of Rows : 2 Rows

Leak current : 100μA Max.

Insulation resistance : 100MΩ Min.

Contact Now

8 Way Sumitomo HW Series Sealed Female Connector 6189-0134 6918-0332

Product Description

8 Way Sumitomo HW Sealed Series Female Connector Kit 6189-0134

Part Number Reference:

6189-0134
6918-0332

This Connector come with the following parts:

(1) x 8 Way Connector
(1) x Harness Lock
(8) x Wire Terminal 18-16 AWG
(8) x Wire Seal

Specification

Keywords	8 way female connector
Part Number	6189-0134 , 6918-0332
Sealed/Unsealed	Sealed Connector
Male/Female	female
Material	PBT
Way	8 way
Contact resistance	Initial 3mΩ Max. after durability tests 6mΩ Max
Leak current	100μA Max.
Insulation resistance	100MΩ Min.
seal	Initial 98kPa Min. after durability tests 98kPa Min.
Quality Control	All goods will be 100% inspected before shipment
Housing Color	Dark Gray
Operating Temperature range	-40℃~120℃
Sample	We can provide you samples before place an order
Including	Connector housing,terminals,rubber seals
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time	About 3-7 days
Replacement Brand	TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	2kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

More details about pictures

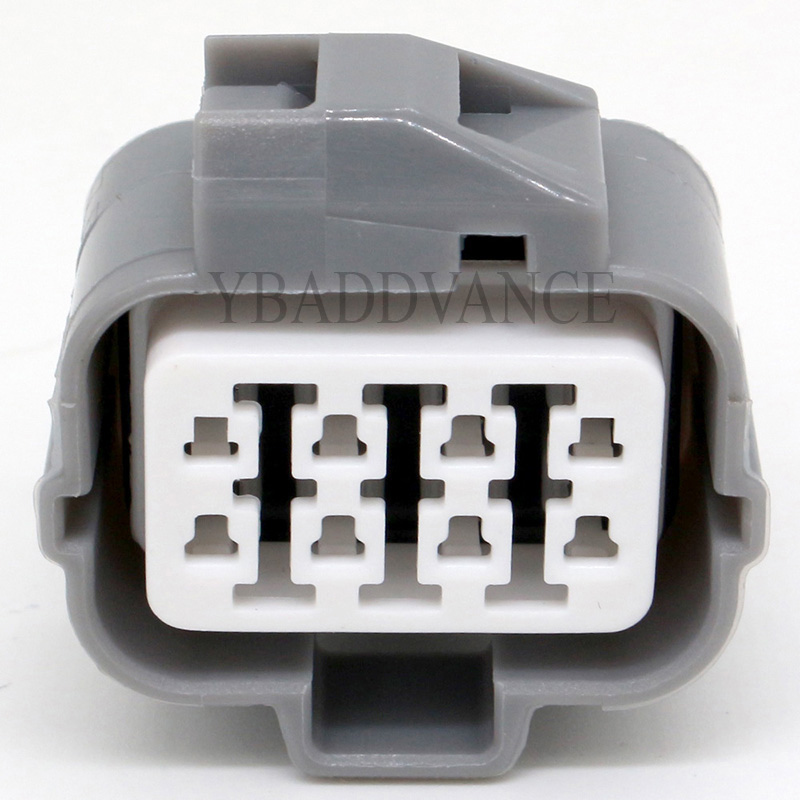

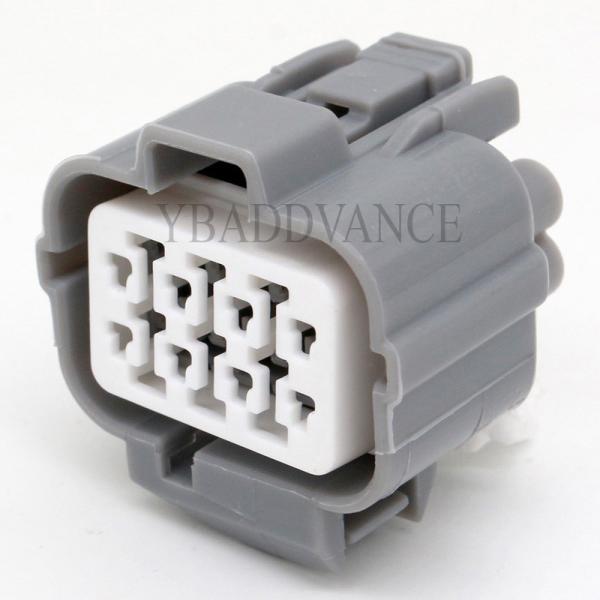

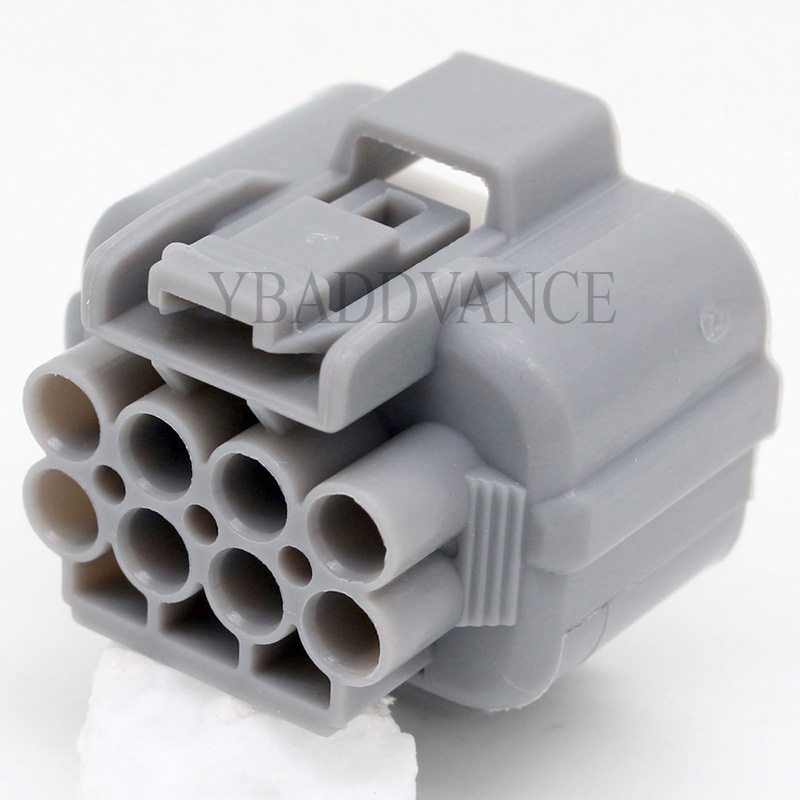

8 Way Sumitomo Sealed Connectors Female HW Series 6189-0134 6918-0332

8 Way Sumitomo Sealed Connectors Female HW Series 6189-0134 6918-0332
