2 Pin Female Sumitomo Sealed Connectors 6189-0172 TS With Terminals And Seals

Name: 2 Pin Female Sumitomo Sealed Connectors 61890172 TS With Terminals And Seals
Brand: YBADDVANCE
Price: 1 USD

Quality 2 Pin Female Sumitomo Sealed Connectors 6189-0172 TS With Terminals And Seals wholesale

Brand Name : YBADDVANCE

Model Number : 6189-0172

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 units

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal , credit card

Supply Ability : 50,000 units/moth

Delivery Time : About 5-8 work days

Packaging Details : Inside packing :100 units / lot put into bags.Outside packing :carton 5 layer

P/N : 6189-0172

Way : 2 hole

Type : Sealed Connector

Gender : Female

Color : Grey

HS code : 8536909000

Feature : Waterproof

WARRANTY : 1 year

Martial : PBT/PA66

PLACE OF ORIGIN : Shaanxi,China

Contact Now

6189-0172 TS Sealed Series 2 Pin Female Connector With Terminals And Seals

Description

TS Sealed Series 2 Pin Female Connector With Terminals And Seals

Height :18.85 mm

Width:29 mm

Length: 33.3 mm

Mating Parts: 6188-0096

Terminal : 8.0mm(312)

It is used for : T OYOTA * M ITSUBISHI * H YUNDAI * K IA * L EXUS *

Specification

Item name	6189-0172 TS Sealed Series 2 Pin Female Connector With Terminals And Seals
P/N	6189-0172
Wire Size	10-14AWG
Operating Temperature range	-40℃~125℃
Insulation resistance	100M Min.
MOQ	100 units/lot
Key words	2 pin Sealed Connector
Design Tooling	Sending us samples or drawing to design it
Delivery Time	About 5-8 work days
Sealed/Unsealed	sealed
Leak current	Initial50kPa Min.after durability tests30kPa Min.
The number of hole	2 way
Color	Grey
Warranty	1 year
Application	Automoive Motorcycles

Product Picture Details

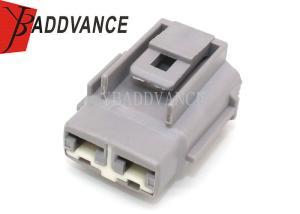

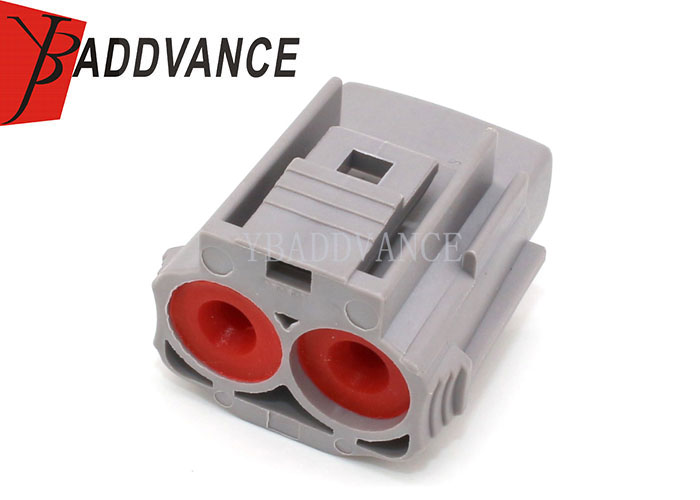

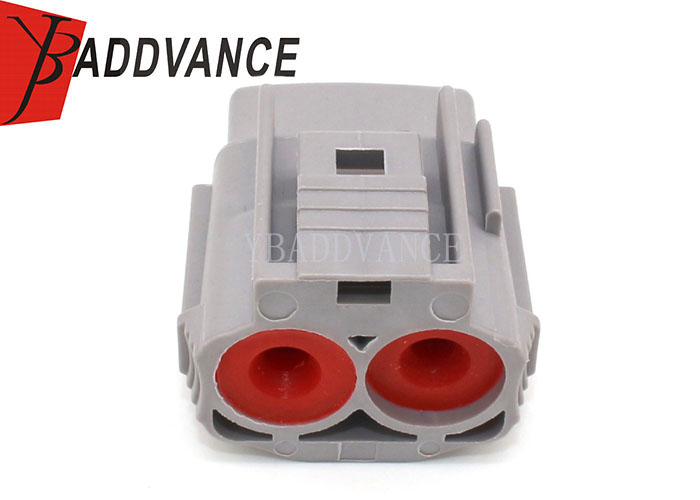

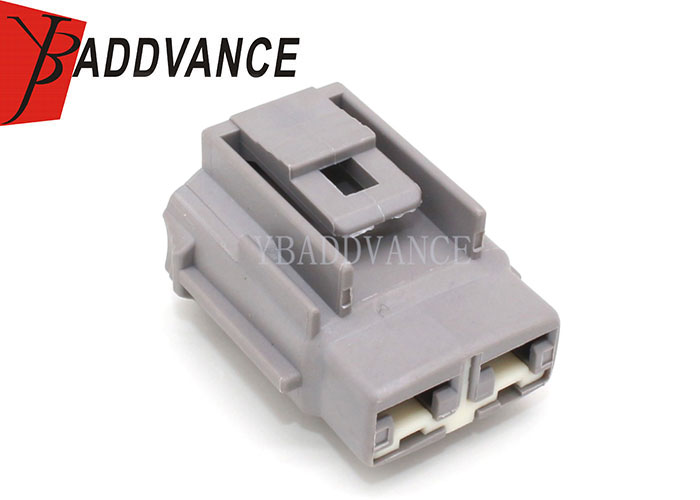

2 Pin Female Sumitomo Sealed Connectors 6189-0172 TS With Terminals And Seals
